Operator Display
128 x 32 Monochrome LCD
Backlight
Keyboard and Buttons
ON / OFF key
10 numeric keys
5 functional keys
1 scan button
Magnetic Card Reader
Triple track bi-directional
Smart Card Reader
Landing type
Contactless Card Reader
ISO/IEC 14443 Type A
ISO/IEC 14443 Type B
MiFARE Mini
MiFARE Classic 1K
MiFARE Classic 4K
MiFARE UltraLight
MiFARE Ultralight C
MiFARE Plus 2K
MiFARE Plus 4K
ISO/IEC 15693
MiFARE DESFire
JIS X 6319-4 - FeliCa
ISO/IEC 18000-3 NFC
Contactless Payments
VISA payWave
MasterCard payPass
American Express ExpressPay
Discover D-PAS
2D Barcode Reader (optional)
Newland EM3096/3396 - 752×480 CMOS
Newland EM3296 - 640 x 480 CMOS
Connectors
USB Type-C port
Wired Communication
USB (device)
Bluetooth
BT version 2.0 power class 2
BT version 3.0 power class 2 (optional)
OS Compatibility
iOS
Android
Windows
LED Indication
Contactless payment status
Audio Features
Electro-Magnetic Buzzer
Power Supply
DC 5V through USB
DC 5V through contact pins
Battery
Rechargeable Li-Ion Battery
3.7 V / 1300 mAh
Reliability
500 000 chip card cycles
1 000 000 magnetic card swipes 1 000 000 button clicks
Certificates
CE, FCC, PCI PTS 5.x, EMV Level 1, EMV Level 2, EMV Level 1 Contactless, Apple® Mfi
Dimension W x D x H
68 x 145 x 23 mm
Weight
182 g
Operational temperature range
-10 °C to +40 °C / 5 to 90% RH
Storage temperature range
-15 °C to +50 °C / 5 to 90% RH
Drop Tested
1.5 m, 6 faces + 4 edges on concrete
Box Contents
BluePad-500 v3 device
90 cm USB Type-A to Type-C cable
Compatible Accessories
Charger (GT1)
5-unit charger (GT5)
Currently there are no accessories for this device.

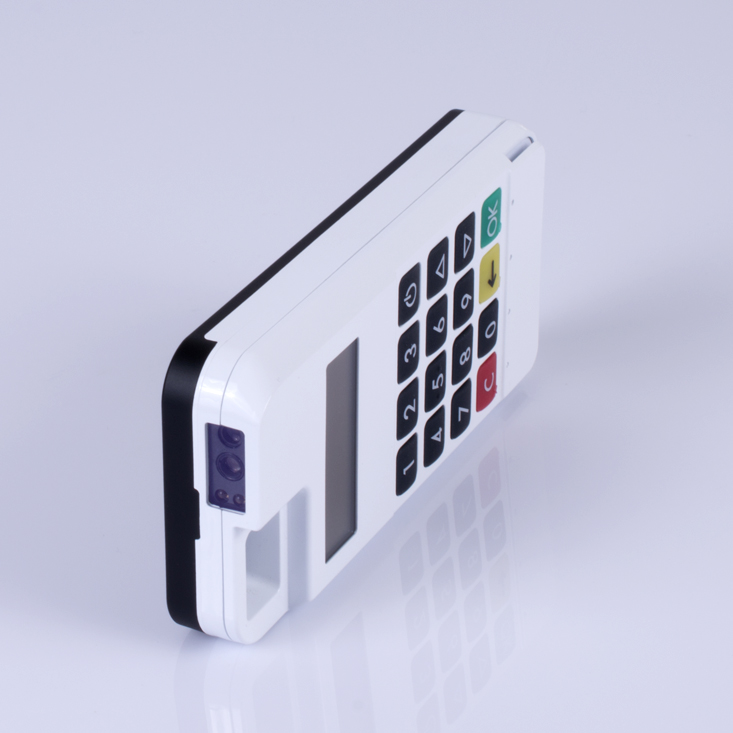

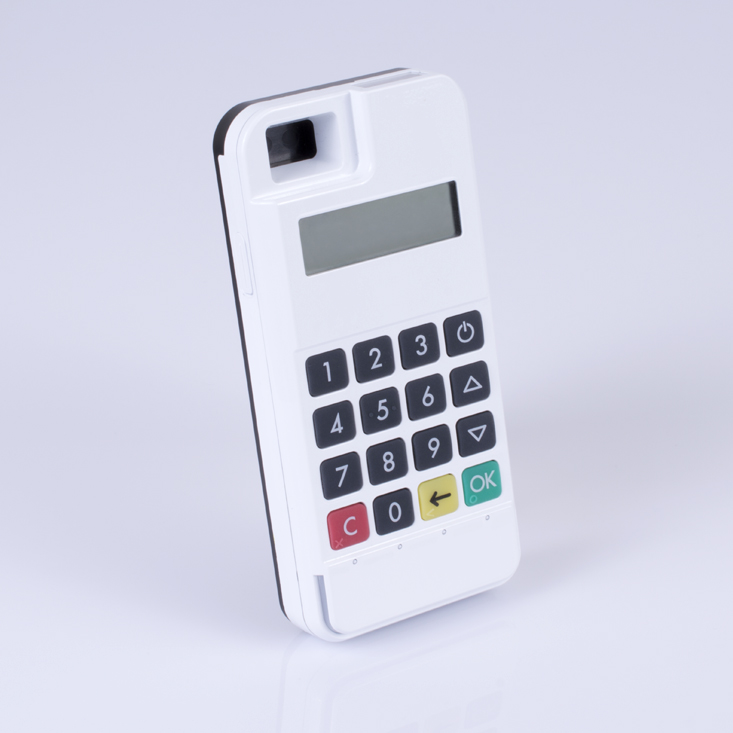

BluePad-500 is the most versatile mobile payment solution. It accepts all forms of payment: Magnetic stripe, EMV Chip&PIN and Contactless cards and includes 2D barcode scanner, which makes BluePad-500 a powerful POS device.

The BluePad-500 meets the latest EMV and PCI PTS specifications for encrypting PIN-entry devices.
