Processor
Cortex-A7 Quad Core - 1.1 GHz 32-bit
512 KB L2 cache
CPU Memory
1 GB RAM
8 GB Flash
Microcontroller
Cortex M3
MCU Memory
64 KB Internal ROM
256 KB Internal RAM
1 MB Internal Flash
Operating System
Android 7.12 Nougat
Display
5-inch mutual capacitance touch 720 x 1280 px
Buttons
On/Off button
2 scan buttons
Magnetic Card Reader
Triple track bi-directional
Smart Card Reader
Landing type
Contactless Card Reader
ISO/IEC 14443 Type A
ISO/IEC 14443 Type B
MiFARE Mini
MiFARE Classic 1K
MiFARE Classic 4K
MiFARE UltraLight
MiFARE Ultralight C
MiFARE Plus 2K
MiFARE Plus 4K
ISO/IEC 15693
MiFARE DESFire
JIS X 6319-4 - FeliCa
ISO/IEC 18000-3 NFC
Contactless Payments
VISA payWave
MasterCard payPass
American Express ExpressPay
2D Barcode Reader
Opticon MDI-4000 - 640 x 480 CMOS
Connectors
RS-232 contact pins
USB Type-C port
Wired Communication
USB (device)
Bluetooth
BT version 3.0 power class 2
Wireless
2.4G/5G, 802.11 a/b/g/n
Modem
4G data only
Audio Features
Electro-Magnetic Buzzer
Power Supply
DC 5 V through USB
DC 5 V through contact pins
Battery
Rechargeable Li-Ion Battery
3.7 V, 2200 mAh
Reliability
500 000 chip card cycles
1 000 000 magnetic card swipes
Dimension W x D x H
146 x 85 x 16 mm
Weight
230 g
Currently there are no accessories for this device.

Coming in 2019

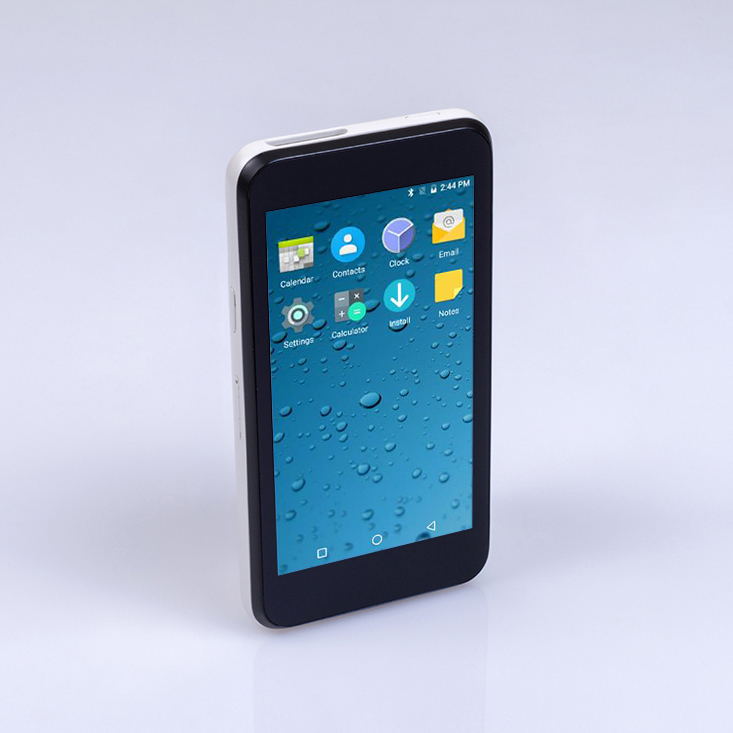

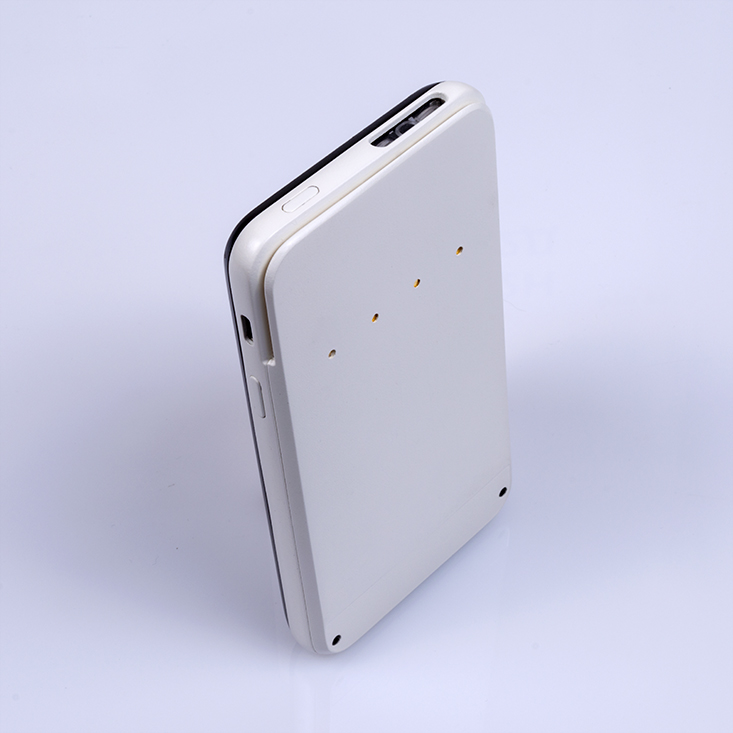

BluePad-5500 is the first self-sufficient Datecs payment terminal. It runs its own Android 7 operating system and provides all card payment capabilities - contactless, magnetic stripe and smart card, including secure PIN entry via its 5-inch touch screen display.
