Processor
Cortex-A7 Quad Core - 1.1 GHz 32-bit
512 KB L2 cache
CPU Memory
1 GB RAM
8 GB Flash
Operating System
Android 7.12 Nougat
Rear Camera
8 MP
Front Camera
2 MP
Sensors
Accelerometer
Gyroscope
Proximity sensor
Display
5-inch mutual capacitance touch 720 x 1280 px
Buttons
On/Off button
2 scan buttons
2 volume buttons
Contactless Card Reader
ISO/IEC 14443 Type A
ISO/IEC 14443 Type B
MiFARE Mini
MiFARE Classic 1K
MiFARE Classic 4K
MiFARE UltraLight
MiFARE Ultralight C
MiFARE Plus 2K
MiFARE Plus 4K
ISO/IEC 15693
MiFARE DESFire
JIS X 6319-4 - FeliCa
ISO/IEC 18000-3 NFC
2D Barcode Reader
Opticon MDI-4000 - 640 x 480 CMOS (optional)
Zebra SE4750 SR - 1280 x 960 CMOS (optional)
Zebra SE4750 MR - 1280 x 960 CMOS (optional)
Connectors
USB Micro port
micro SD card slot
micro SIM card slot
Wired Communication
USB (device)
Bluetooth
BT version 3.0 power class 2 (optional)
BT version 4.2 Low Energy (optional)
Wireless
2.4G/5G, 802.11 a/b/g/n
Modem
4G and Legacy
GNSS
GPS
GLONASS
BeiDou
Audio Features
Microphone
Phone Speaker
Power Supply
DC 5 V through USB
DC 5 V through contact pins
Battery
Rechargeable Li-Ion Battery
3.7 V, 4100 mAh
Dimension W x D x H
85 x 146 x 16 mm
Weight
270 g
Box Contents
BlueSky device
90 cm USB Type-A to micro cable
Currently there are no accessories for this device.

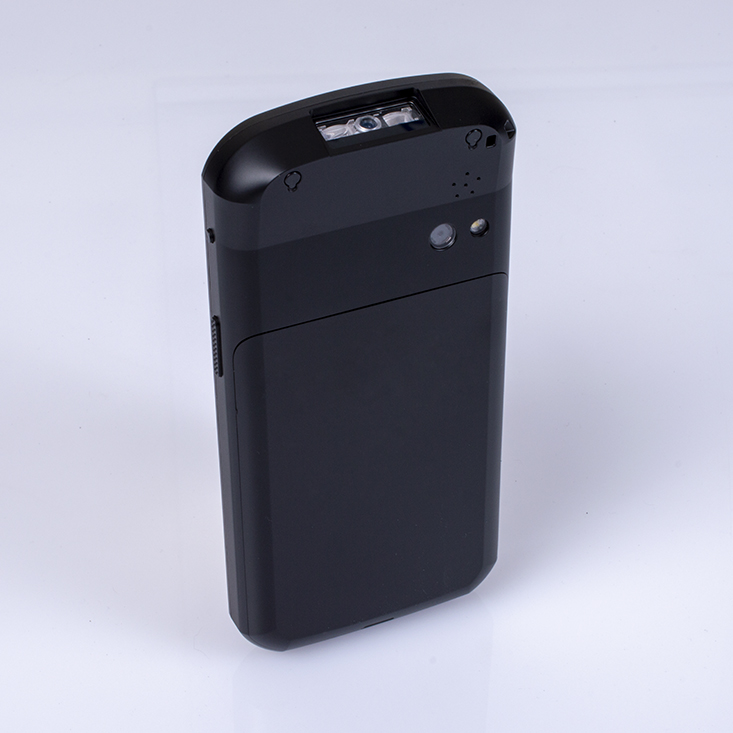

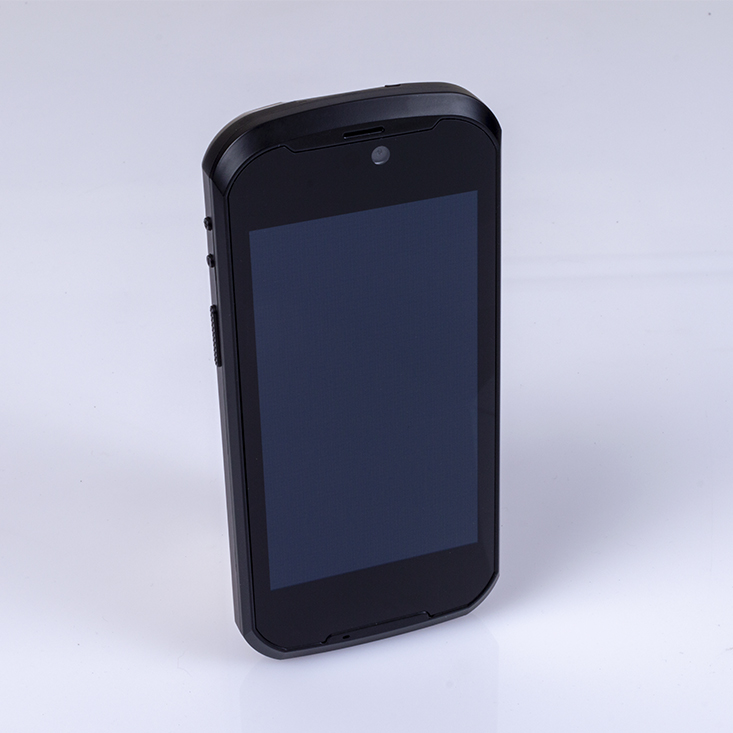

BlueSky is a mobile data collector, running
Android 7 operating system. It combines a fast 2D barcode reader with all the capabilities of a smartphone, eliminating the need for multiple devices.
