Printing Mechanism
Direct line thermal printer
Printing Width
54 mm (432 dots)
Printing Resolution
203 x 203 dpi (8 x 8 dpmm)
Printing Speed
37.5 lines per second
Printable Font Sizes
Font A - 12 x 24 dots (36 characters per line)
Printable Logo
1 Black and White (54 x 12 mm)
Printable Barcode Types
EAN-13, EAN-8, Code 128, Interleaved 2 of 5
Paper Type
Thermal paper rolls
Paper Width
58 mm
Paper Thickness
60 μm
Roll Max Diameter
60 mm
Paper Loading

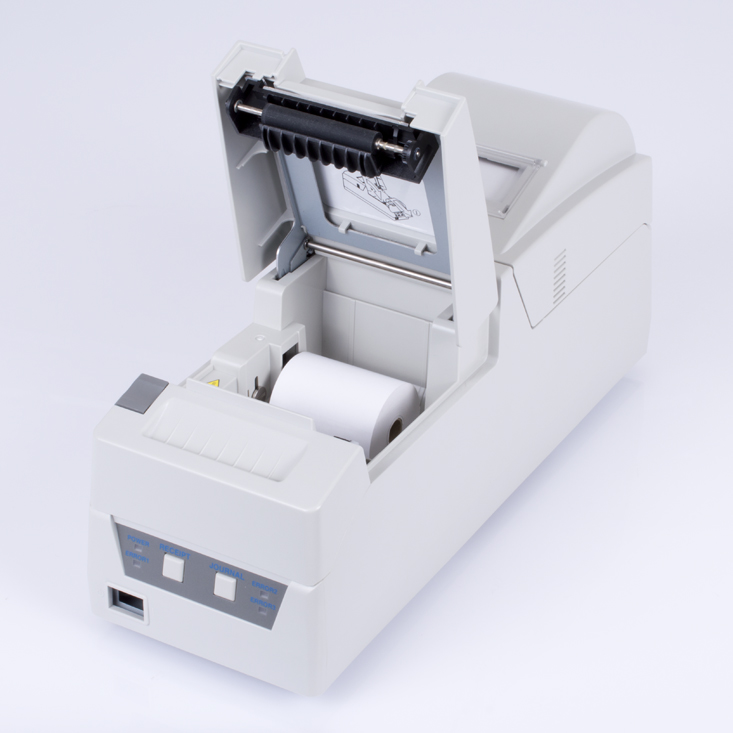

Easy paper loading
Post Printing Features
Auto cutter
Emulation
Datecs Proprietary Fiscal Protocol
Connectivity
RS 232C
Cash Drawer through RJ11 connector
External Display through RJ11 connector
GPRS Module (Option)
LED Indication
Paper end
Overheating
Power
Status
Keyboard and Buttons
On/Off button
2 function buttons
Power Supply
AC 100 to 240 V, 50 to 60 Hz, DC 24 V, 2 A
Reliability
100 million pulses, 100 km (Thermal head)
1 million cuts (Auto cutter)
Certificates
CE
Dimensions (W x D x H)
125 x 355 x 175 mm
Weight
2500 g
Operational temperature range
-10 to 40 °C, 35 to 85 % RH
Storage temperature range
-10 to 60 °C, 10 to 90 % RH

Adapters (1)

1 rs bluetooth adapter

RS Bluetooth Adapter

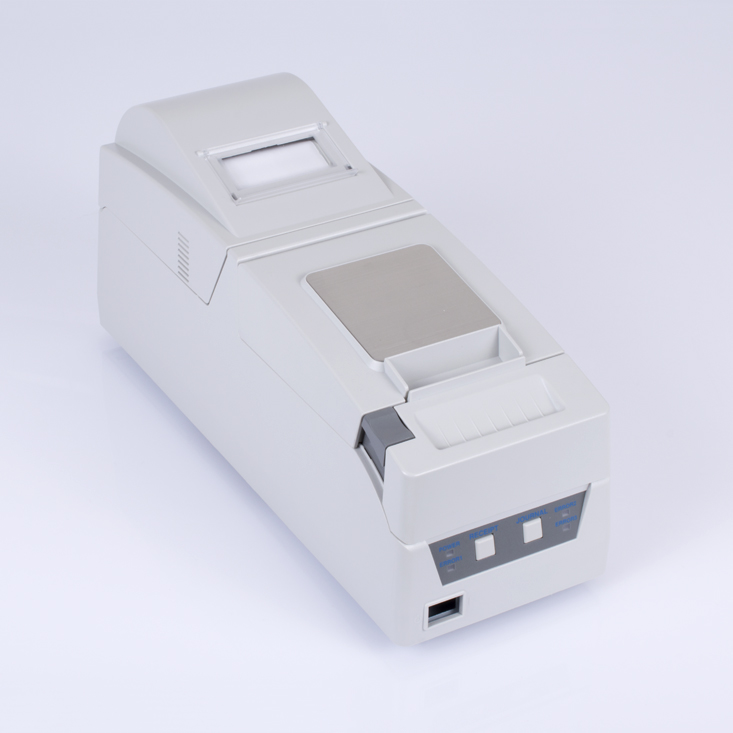

FP-600 is a new two station fiscal printer which was developed as a replacement for FP-550. It is also a two station printer with receipt printer and journal printer. The new features are easy paper loading and high speed printing.
