Printing Mechanism
Direct line thermal printer
Printing Width
56 mm (448 dots)
Printing Resolution
203 x 203 dpi (8 x 8 dpmm)
Printing Speed
Max 150 mm per second
Printable Font Sizes
Font A - 11 x 24 dots
Font B - 9 x 17 dots
Printable Logo
Printable Barcode Types
1D: EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, Interleaved 2 of 5, Codabar, Code 93
Paper Type
Thermal paper rolls
Paper Width
60 mm
Paper Thickness
60 μm
Roll Max Diameter
63 mm
Paper Loading
Easy paper loading
Post Printing Features
Auto cutter
Datecs Proprietary Protocol
RS 232C
USB 1.1
Cash Drawer through RJ11 connector
External Display through RJ11 connector
LED Indication
Paper end
Keyboard and Buttons
On/Off button
2 function buttons
Power Supply
AC 100 to 240 V, 50 to 60 Hz, DC 24 V, 2 A
15 million lines (Mechanism)
100 km (Thermal head)
1 million cuts (Auto cutter)
Dimensions (W x D x H)
140 x 300 x 200 mm
3500 g
Operational temperature range
5 to 40 °C, 10 to 85 % RH
Storage temperature range
-10 to 50 °C, 10 to 90 % RH

Adapters (1)

1 rs bluetooth adapter

RS Bluetooth Adapter

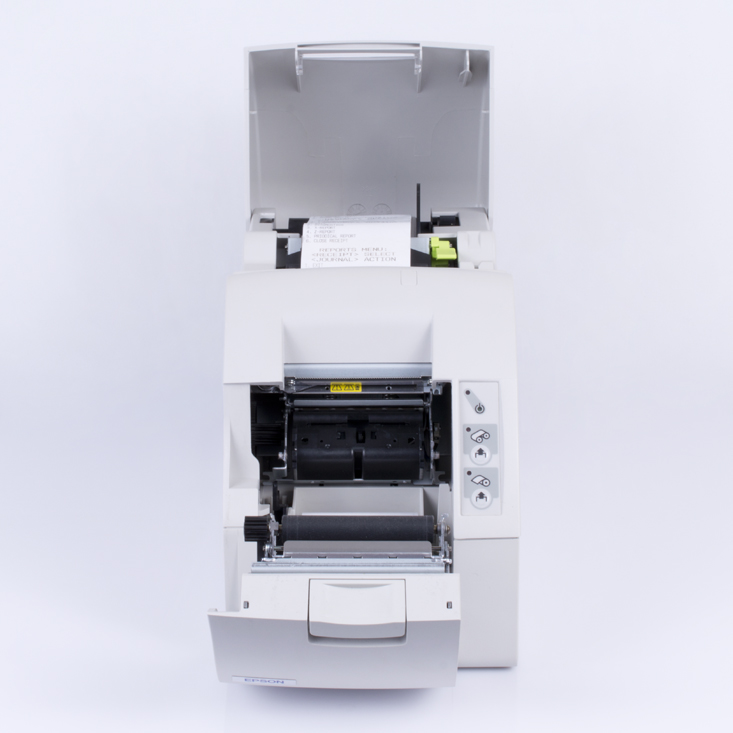

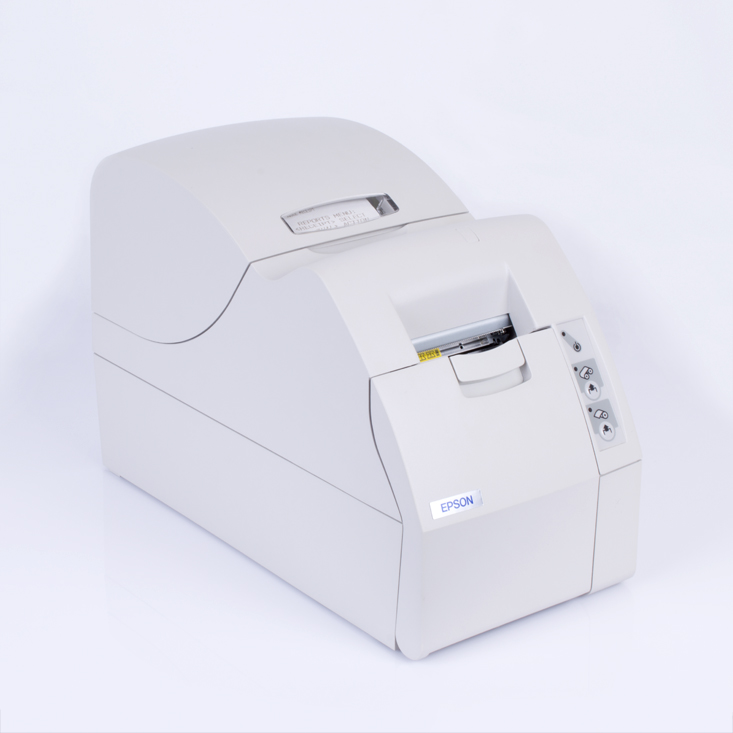

DATECS TM-T260 BGF is a new generation of fiscal printers offered by DATECS LTD. The printer uses a standard EPSON Line Thermal Printer TM-T260F to which Datecs engineers have added all their expertise in the design of fiscal equipment. As a result we can offer to our customers a full line of fiscal printers.
