Printer Mechanism
Direct line thermal printer
Printing Speed
up to 12 lines per sec
Paper Width
58 mm
2 x 38 mm (24 characters per line)
Paper Thickness
60 - 72 μm
Roll Diameter
65 mm
50 mm (2 rolls)
Paper Loading
Easy paper loading
Operator Display
Graphic LCD, 128 x 64 px with backlight
Customer Display
Alpha-numeric LCD, 2 lines x 16 characters
38 Keys
PLU database
Capacity 30 000 PLUs
22 characters name lenght
Max Q-ty per item 99 999.999kg
Inventory Groups
30 Operators names, ID codes and up to 4 digits passwords (MS Card, RFID Card)
TAX groups
Payment types
In cash with five programmable names (check, coupon, ticket, etc.)
In cash with additional currency (EURO)
Barcode types
Accept Barcodes: EAN-13, EAN-8, UPC, etc.
Two programmable RS232 COM ports for:
- Barcode Reader (default)
- Scale (default)
- ESC POS Printer
- External Customer Display
LAN Ethernet 100 Mb - Communication with PC
Cash Drawer
Bluetooth (option)
GPRS (optional)
Power supply
Input: AC 110/240V 50-60 Hz
Output: DC 12V 2500mA
Rechargeable Li-Ion battery 7.4V 2000 mAh (option)
Dimensions (WxDxH)
244 x 277 x 118 mm
1400 g
Compatible Accessories
External keyboard 50 keys
Currently there are no accessories for this device.

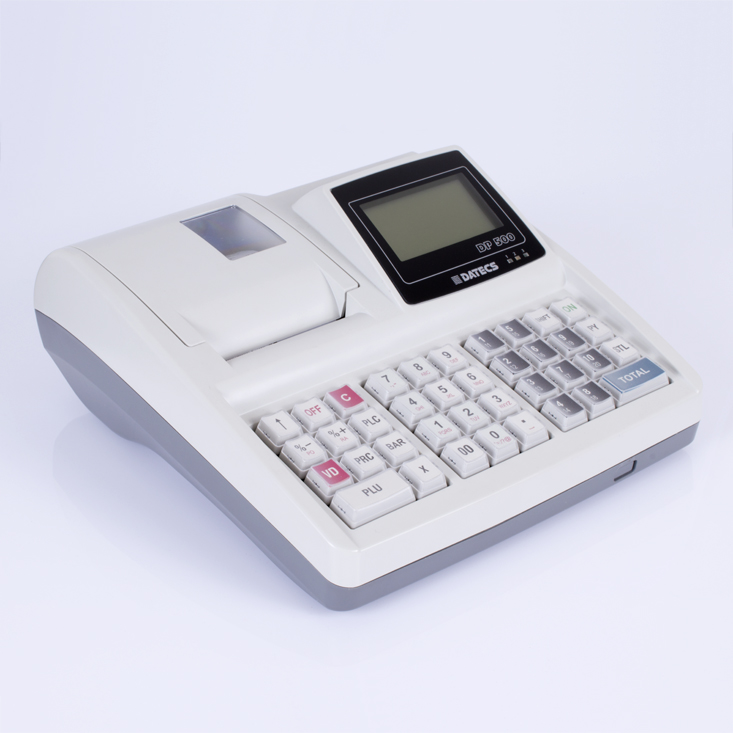

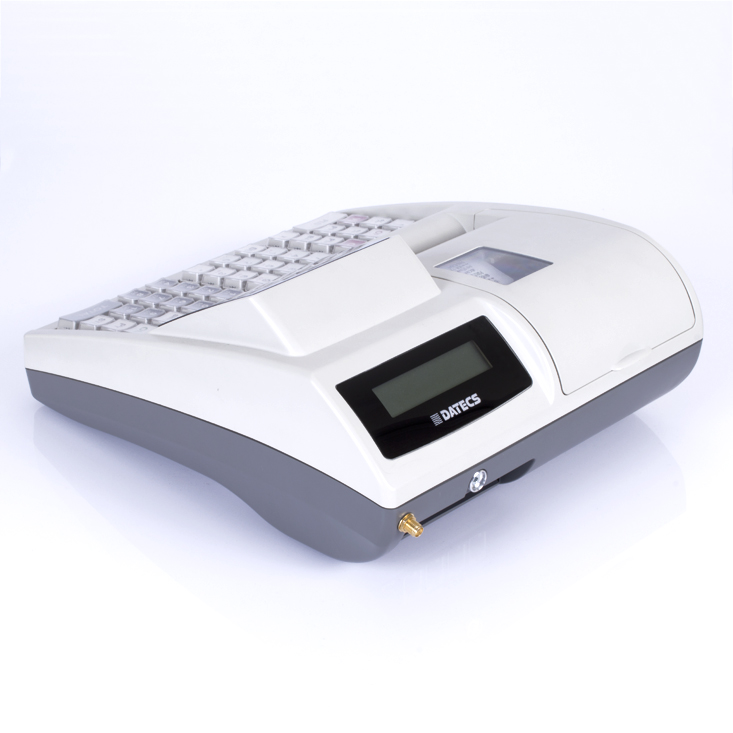

DP-500 Plus is the highest in Datecs portfolio. Powered by a powerful ARM 7 CPU it provides customers with Ethernet connectivity, GPRS communication, WEB based applications, SD card connectivity and many other new features. The model comes with a bigger display allowing eight lines to be displayed.
