Smart Card Reader
Friction type
AES-128, RSA-2048 for key encryption
Connectivity
Datecs proprietary audio protocol interface through 3.5 mm TRRS Jack
Supporting both TRRS standards: OMTP, CTIA
OS Compatibility
iOS
Android
Windows Phone, Windows 10 Mobile
Power Supply
DC 5V through micro USB
Battery
Rechargeable Li-Po Battery 3.7 V, 190 mAh
10 000 chip card operations with one charge
Automatic Power Off after 2 seconds idle
Reliability
500 000 chip card cycles
Certificates
EMV Level 1, EMV Level 2
Dimension W x D x H
55 x 60 x 11 mm
Weight
40 g
Operational temperature range
-10 °C to +40 °C / 5 to 90% RH
Storage temperature range
-20 °C to +50 °C / 5 to 90% RH
Currently there are no accessories for this device.

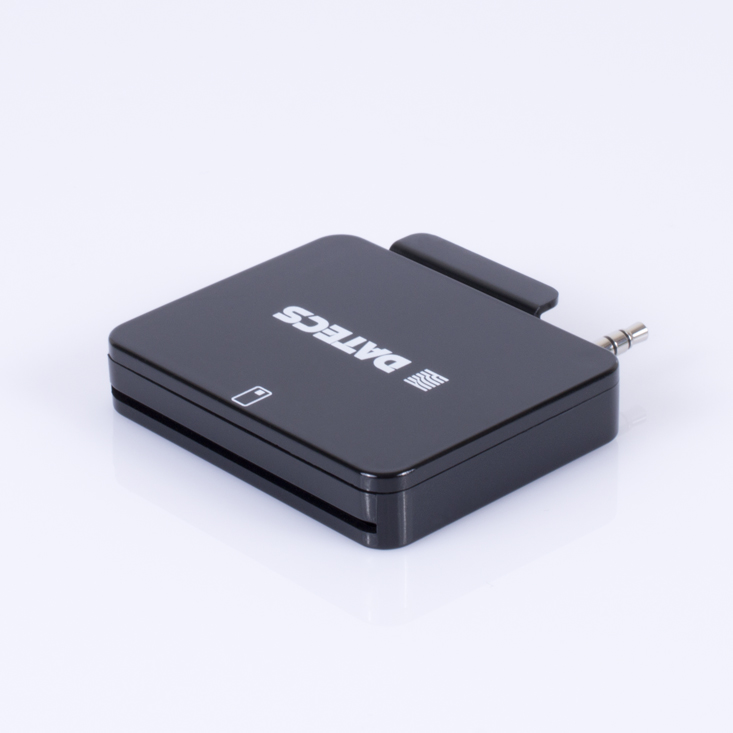

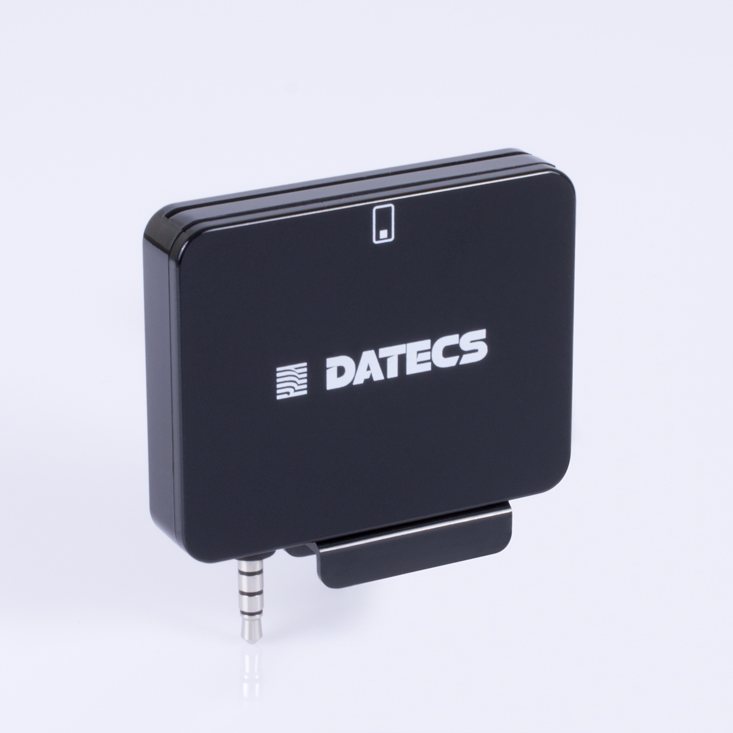

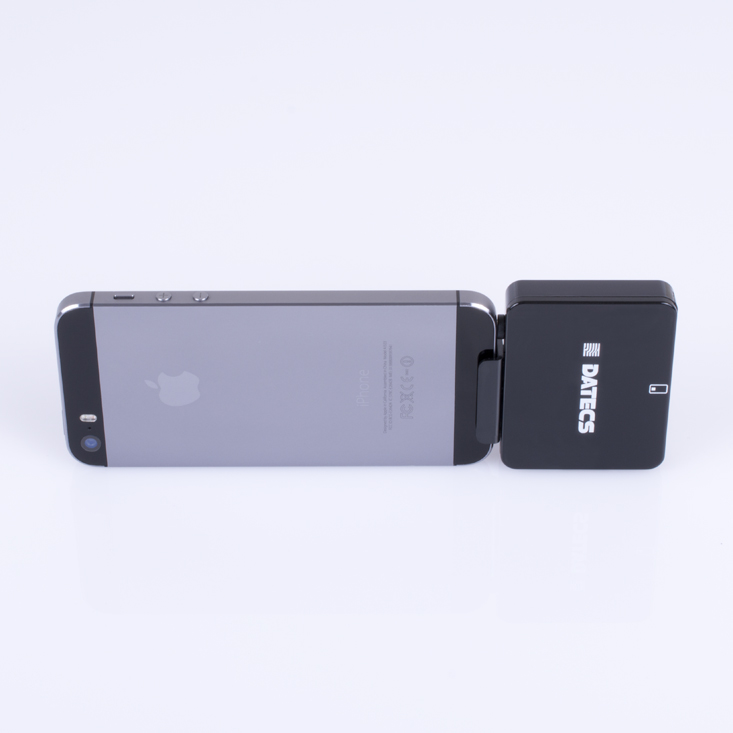

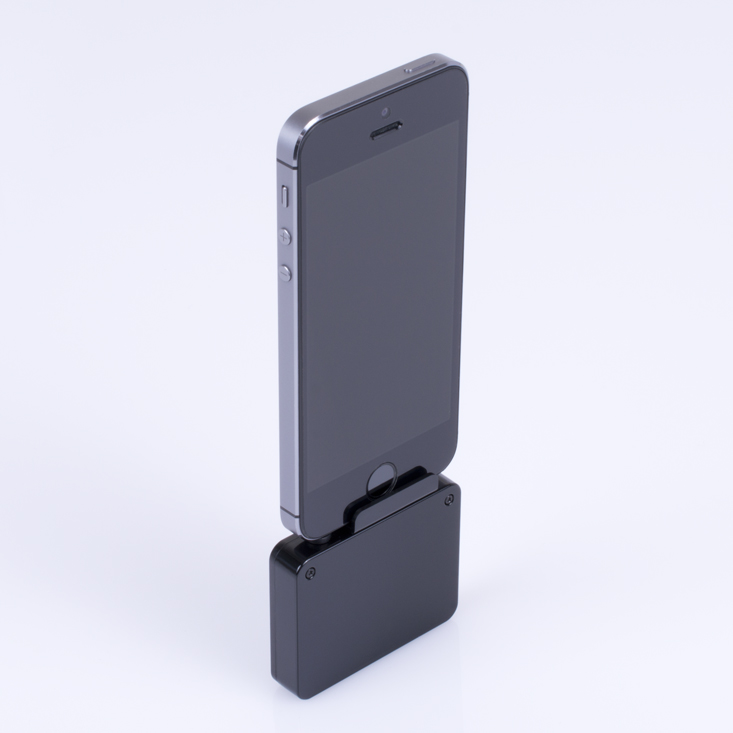

The DRD-10 is a smart card reader for all Apple mobile devices – iPhone ®, iPod ® and iPad ®
(iOS) and all Android and Windows mobile devices.

With the DRD-10, merchants can accept payment and loyalty card payments wherever they are.
