Printing Mechanism
Direct line thermal printer
Printing Width
48 mm (384 dots)
Printing Resolution
203 x 203 dpi (8 x 8 dpmm)
Printing Speed
Max 100 mm per second
Max 62 mm per second (Peeling)
Printable Font Sizes
Font A: 48 characters per line
Font B: 64 characters per line
Loadable Font Sizes
Font C: 48 characters/line
Font D: 64 characters/line
Printable Logo
1 Black and White (384 x 248 dots)
Printable Barcode Types
1D: EAN 13, EAN 8, UPC A, UPC E, Code 39, Code 93, Code 128, Codabar, 2 of 5 interleaved
2D: PDF417, QR code
Paper Type
Thermal paper rolls / Label rolls
Paper Width
25.4 to 58 mm
Paper Thickness
Receipt: 60 to 150 μm
Label: Max. 165 μm
Roll Max Diameter
58 mm
Paper Loading
Easy paper loading
Paper Sensor
Black Mark
Label Gap
Peeled label
Post Printing Features
Peeler
Emulation
ESC/POS
Eltron
Connectivity
RS-232C port (max 115200bps )
mini USB 2.0 port (device)
Bluetooth 2.0 class 2 (Serial Port Profile) (optional)
Bluetooth 3.0 class 2 (Serial Port Profile, iPod Accessory Protocol) (optional)
Wireless LAN 802.11b (optional)
OS Compatibility
iOS, Android OS, BlackBerry OS, Windows OS, Win CE, Windows Mobile, Windows Phone 8.x
LED Indication
Battery low
Battery charging
Paper end
Cover open
Overheating
Audio Features
Electromagnetic buzzer
Keyboard and Buttons
On/Off button
Feed button
Print button
4 dip switches
Power Supply
AC 100 to 240 V, 50 to 60 Hz, DC 9 V, 1A
Battery
Rechargeable Li-Ion battery 7.4V, 2000mAh
2.5 hours charging time
20 000 lines per fully charged battery
Reliability
50km (Thermal head)
15 000 000 lines (Mechanism MCBF)
Certificates
CE
Dimensions (W x D x H)
88 x 120 x 64 mm
Weight
420 g (with battery)
Operational temperature range
-10 to 50 °C, 30 to 85 % RH
Storage temperature range
-20 to 60 °C, 10 to 90 % RH
Drop Tested
1.5 m
Compatible Accessories
Holster
Belt clip
Shoulder strap
Car power adapter

Adapters (1)

1 car power adapter 9v 1a, plug 3.5 mm

Car Power Adapter 9V 1A, Plug 3.5 mm


Holsters (1)

1 dpp 255 holster

DPP-255 Holster

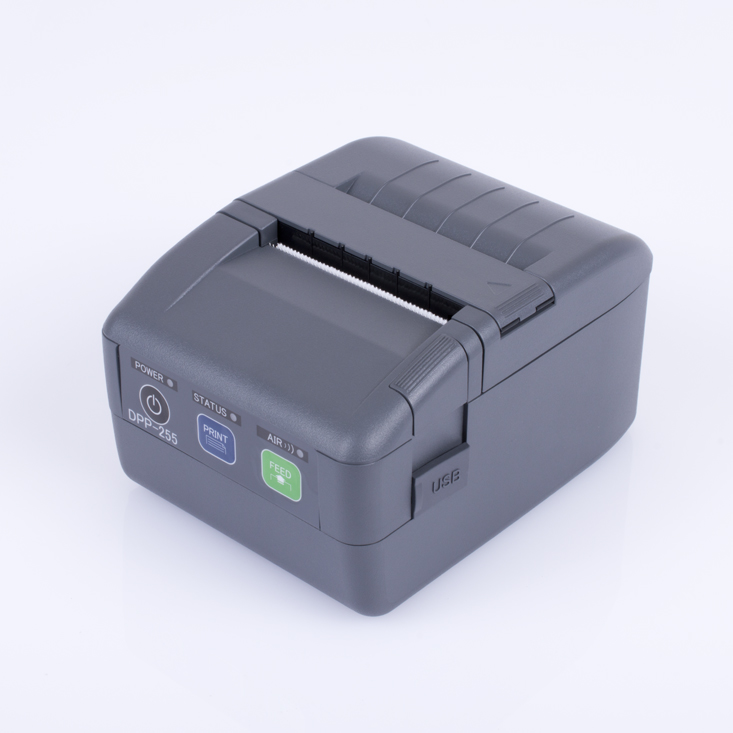

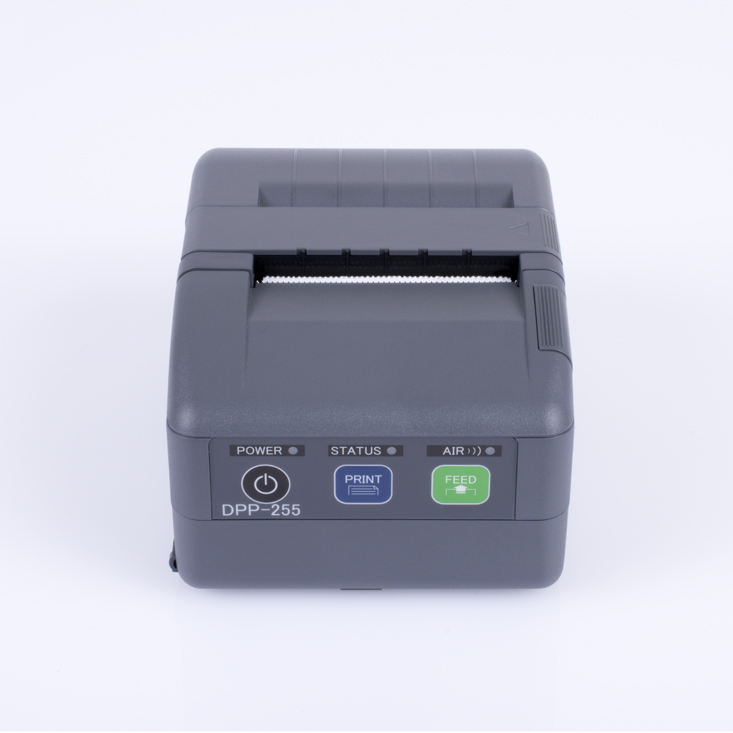

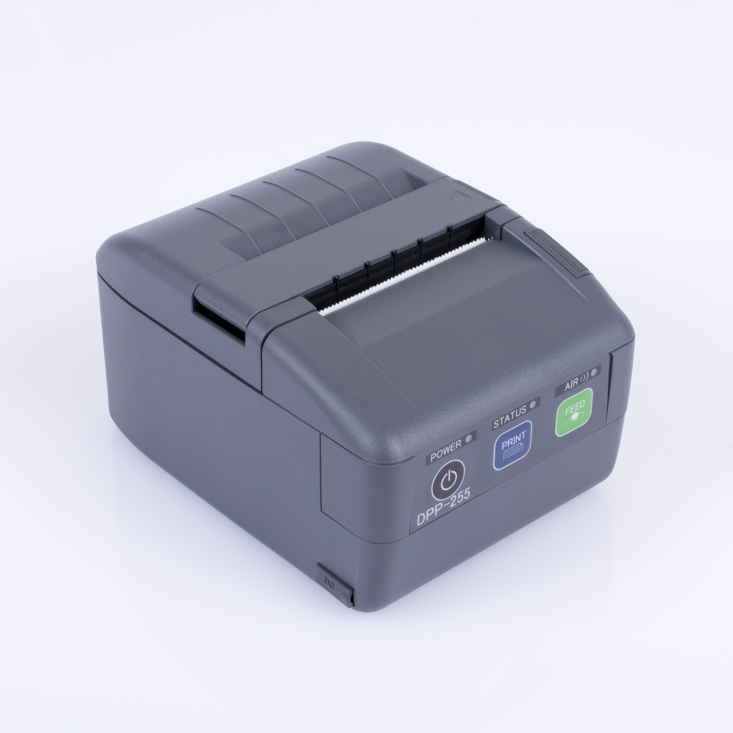

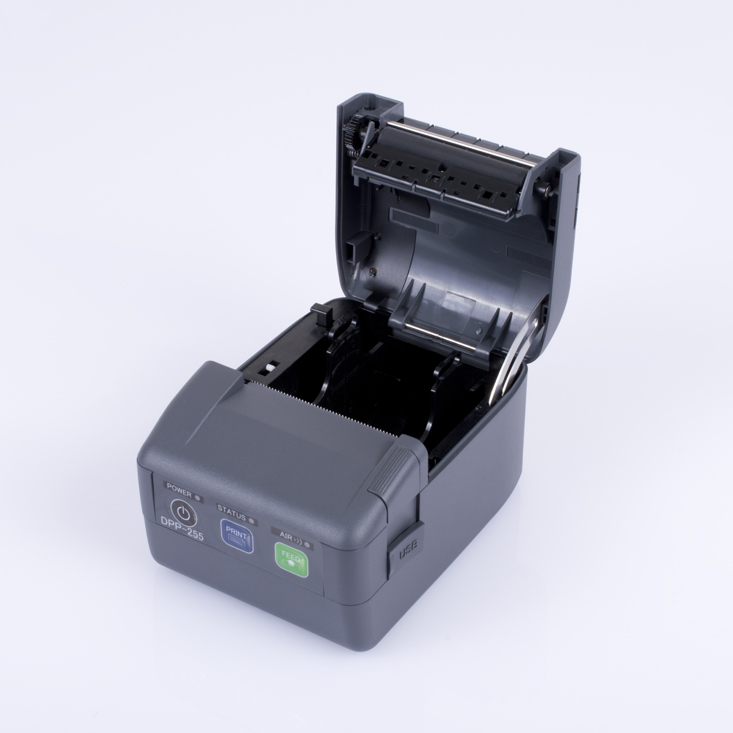

DPP-255 is the newest mobile label printer from Datecs. It has all the features of DPP-450, but as it is a 2” printer its size and weight are greatly reduced. Because of its mechanism for paper size control labels with different sizes can be used. Though small in size it provides an automatic peeler functions which makes it ideal for heavy duty labeling jobs. DPP-255 provides Bluetooth and WiFi communication along with the standard serial and USB.
