Products

FP-700 - FP-700 MX

Related Documents
Document Title File Size Region Language Date Added
FP-700 9.7 MB International English 05/11/2015
Related Downloads
Document Title File Size Region Date Added OS
FPAX_TZA700 2.22 MB Zimbabwe August 21 2015 Windows
FPAX_TZA700 2.22 MB Tanzania August 21 2015 Windows
FiscalDevice XamarinAndroid SDK 2023-03-15 v1.0.0.5Src Bulgaria 11.2 MB bg July 13 2023 Android
Fiscalprinter JAVA SDK 2023-03-30 v2.7.0 BGR 11.4 MB Bulgarian March 30 2023 Windows
Printing Mechanism
Direct line thermal printer
Printing Width
80 mm (640 dots)
Printing Resolution
203 x 203 dpi (8 x 8 dpmm)
Printing Speed
Max 200 mm per second
Printable Font Sizes
Font A - 12 x 24 dots
Font B - 9 x 24 dots
Font C - 8 x 16 dots
Printable Barcode Types
1D: EAN-13, EAN-8, Code 39, Code 128, Interleaved 2 of 5, Codabar
Paper Type
Thermal paper rolls
Paper Width
82 and 58 mm
Paper Thickness
60 to 150 μm
Roll Max Diameter
102 mm
Paper Loading
Easy paper loading
Post Printing Features
Auto cutter
Operator Display
Graphic LCD, 4 lines x 22 characters (128x32 )
LED Back Light
Emulation
Datecs Proprietary Fiscal Protocol
Connectivity
RS 232C
USB 2.0 compatible
LAN – 100 Mbps (100BASE-TX)
Cash Drawer through RJ11 connector
External Display through RJ11 connector
GPRS Module (Option)
SAM Slot
LED Indication
Paper end
Cover open
Keyboard and Buttons
On/Off button
Feed button
4 function buttons
Power Supply
AC 100 to 240 V, 50 to 60 Hz, DC 24 V, 2.1 A
Reliability
150 km (Thermal head)
1.5 million cuts (Auto cutter)
Certificates
CE
Dimensions (W x D x H)
150 x 185 x 130 mm
Weight
1700 g
Operational temperature range
-10 to 40 °C, 35 to 85 % RH
Storage temperature range
-20 to 60 °C, 10 to 90 % RH

Adapters (0)

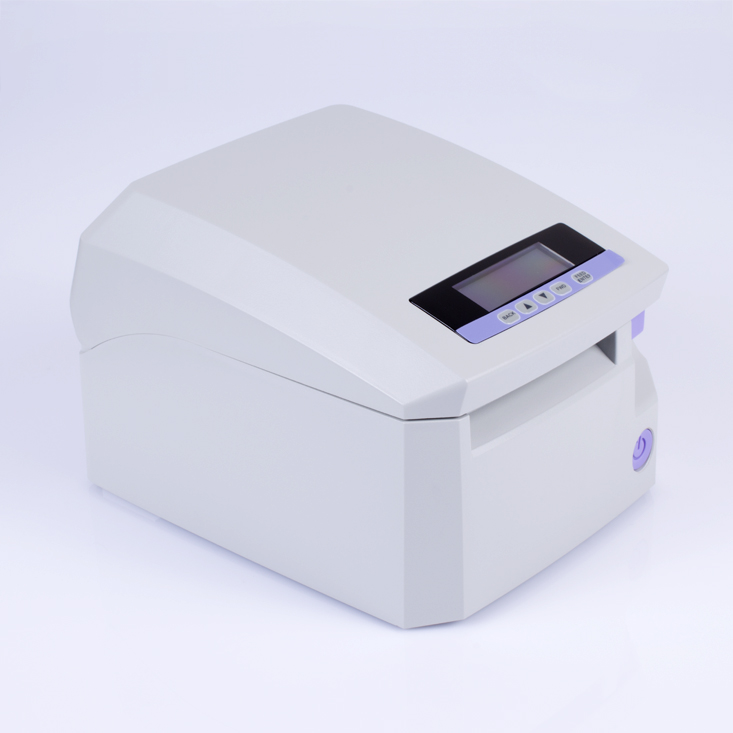

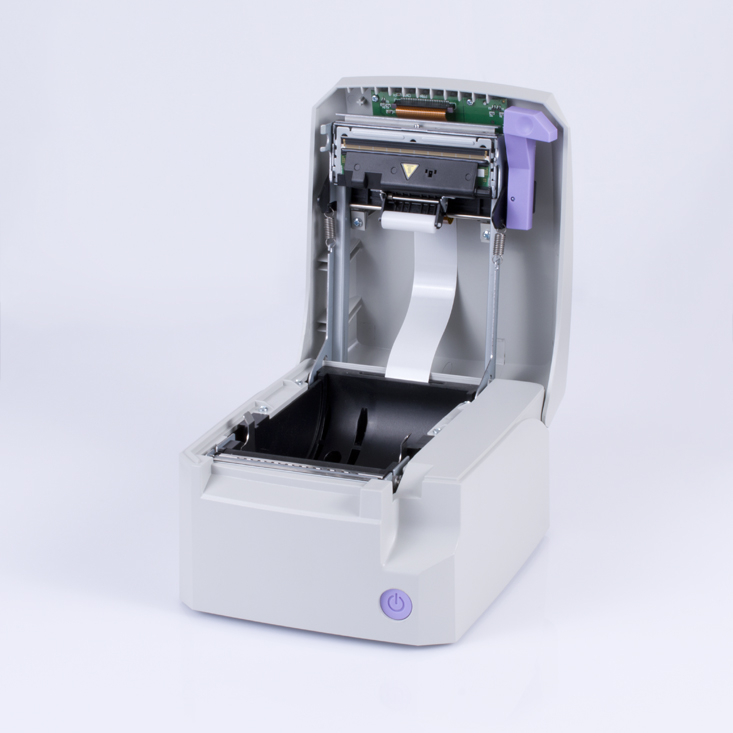

FP-700 is the highest class ESC/POS and Fiscal printer. It is designed to support large retail points of sales and services offering RS 232, USB and Ethernet connectivity.

The FP-700 also provides built-in Electronic Journal and GPRS, dedicated to connect any taxation on-line system.
