Printer Mechanism
Direct line thermal printer
Printing Speed
up to 12 lines per sec
Paper Width
58 mm (42 characters per line)
Paper Thickness
60 μm
Roll Diameter
55 mm
Paper Loading
Easy paper loading
Operator Display
Graphic LCD, 2 lines x 16 characters (96x18)
Customer Display
Alpha-numeric LCD, 2 lines x 16 characters or
Graphic LCD,2 lines x 16 characters (96x18)
Keyboard
33 Keys
PLU database
Capacity 2500 PLUs
Name length 22 characters
Inventory groups
9
Departments
9
Operators
30 (8 active)
TAX groups
8
Fiscal Memory
Non-volatile, can keep up to 1825 daily reports
Graphical logo
Suported size (384 x 96) - (384 x 336) dots (8 dots step)
Payment types
Cash, check*, card*, credit* (*programmable)
Cash with alternative currency
Barcode types
EAN 13, EAN 8, UPC, Printed by electronic scales
Maximum number of sales in one receipt
Over 120
Connectivity
2 x RS-232C port for:
- Barcode reader
- Digital scale
- External customer display
- PC
1 x Drawer control
Bluetooth (option)
GPRS (option)
Power supply
Input: AC 110/240V~, 50-60 Hz
Output: DC 9V/5A
Battery
Rechargeable Li-Ion battery 7.4V 2000 mAh (option)
Dimensions (WxDxH)
160 x 222 x 63 mm(without customer display)
Weight
715 g (including the paper roll)

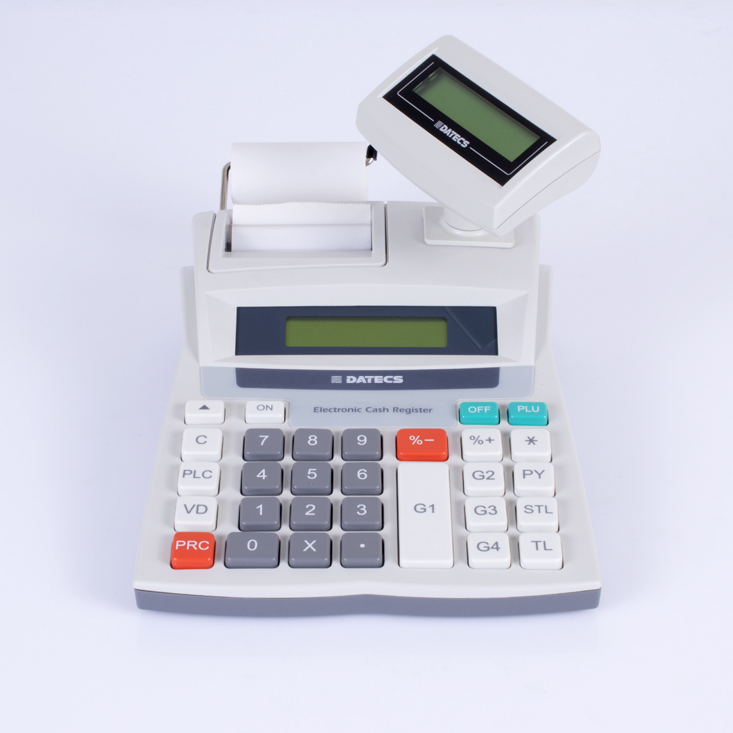

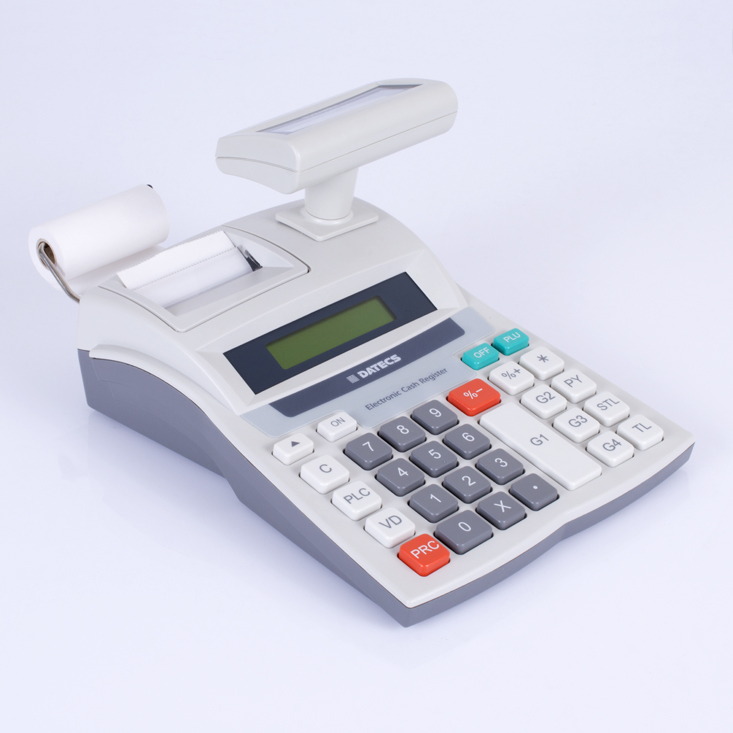

The DP-15 cash register is designed to support various small points of sale. It provides built-in Electronic Journal and GPRS, dedicated to connect any taxation On-line system.
Connectivity
Options
