DP-50 Plus
Related Documents
| Document Title | File Size | Region | Language | Date Added |
|---|---|---|---|---|
DP-50 Plus
|
1.2 MB | International | English | 11/11/2015 |
Related Downloads
| Document Title | File Size | Region | Date Added | OS |
|---|---|---|---|---|
|
FPrint Windows v3.1.4.82
|
4.36 MB | Federation of Bosnia and Herzegovina | August 16 2018 | Windows |
Printer Mechanism
Direct line thermal printer
Printing Speed
up to 12 lines per sec
Paper Width
2 x 28 mm (18 characters per line) or
1 x 58 mm (42 characters per line)
Paper Thickness
60 - 72 μm
Roll Diameter
65 mm
40 mm (2 rolls)

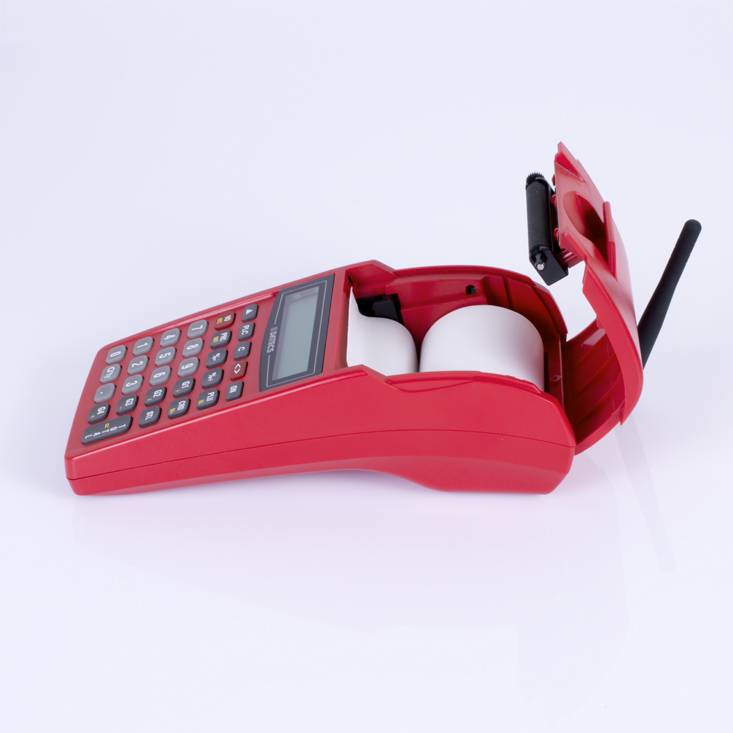

Paper Loading
Easy paper loading
Operator Display
Graphic LCD 2 lines x 16 characters (98x16)
Customer Display
Alpha-numeric LCD 2 lines x 16 characters (option)
Keyboard
29 keys
PLU database
Capacity: 15 000 PLUs (trade mode)
or 5 000 PLUs (restaurant mode)
Name length 22 characters
Inventory groups
99
Departments
99
Operators
30
TAX groups
8
Fiscal Memory
Non-volatile, 1825 reports
Graphical logo
Suported size 384 x 96 dots
Payment types
Cash, check, credit card, coupon
Barcode types
EAN-13, EAN-8, UPC, Printed by electronic scales
Maximum number of sales
in one receipt
Over 300
Over 300
Connectivity
RS 232C - 1 pcs., each of them can be configured in REG mode to work with:
- Barcode Reader
- Scale
- External customer display
- Connection with PC
Power supply
Input: AC 110/240V~, 50-60 Hz
Output: DC 9V/1A
Battery
Rechargeable Li-Ion battery 7.4V 2000 mAh
Dimensions (WxDxH)
88 x 194 x 67 mm (without customer display)
Weight
570 g
Compatible Accessories
Holster for DP-50
Car Power Adapter

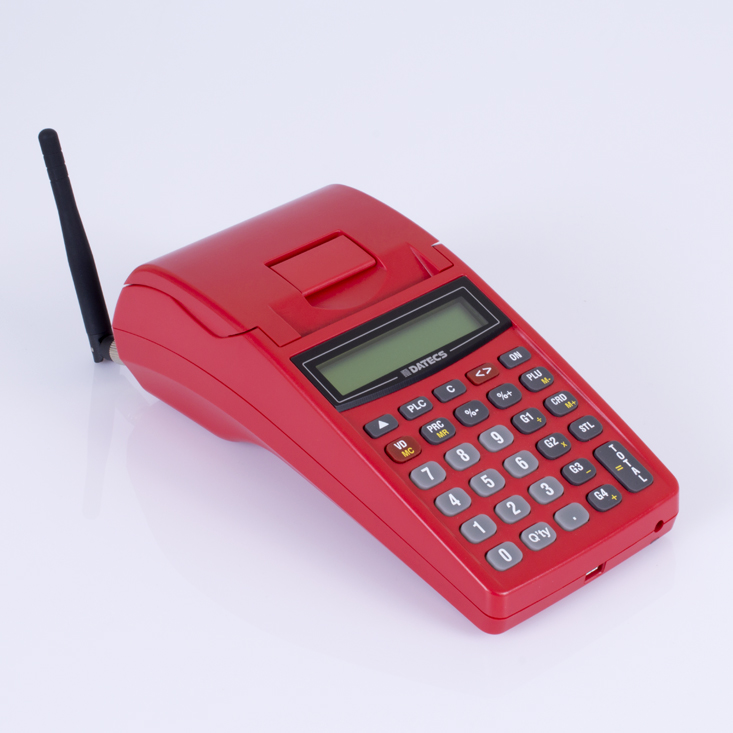

DP-50 Plus is Datecs' mobile cash register. It is one of the smallest on the market, yet very powerful. This ECR has a 2200mAh LiIon battery pack which allows the device to be used for very long time without recharging. Datecs uses battery cells from Samsung which guaranties long life of the device. Though very small in size DP-50 Plus can have embedded barcode scanner, GPRS modem, Bluetooth module etc.
Connectivity
Options
