Printer Mechanism
Direct line thermal printer
Printing Speed
up to 12 lines per sec
Paper Width
2 x 28 mm (18 characters per line) or
1 x 58 mm (42 characters per line)
Paper Thickness
60 - 72 μm
Roll Diameter
65 mm
40 mm (2 rolls)
Paper Loading
Easy paper loading
Operator Display
Graphic LCD, up to 4 lines and up to 22 characters (128 x 32)
Customer Display
Alpha-numeric LCD, 2 lines x 16 characters
Keyboard and Buttons
33 keys
PLU database
Capacity 30 000 PLUs
Name length 22 characters
Max Q-ty per item 99 999,999 kg
Inventory groups
99
Departments
99
Operators
30 (30 active)
TAX groups
8
Fiscal Memory
Non-volatile, can keep up to 2400 daily reports
Graphical logo
Suported size 384x96 dots (384x336 dots)
Payment types
Cash, check, card, credit
Cash with alternative currency: USD or EUR
Barcode types
EAN-13, EAN-8, UPC,Printed by electronic scales
Maximum number of sales in one receipt
Over 300 sales
Connectivity
2 x RS-232C (for Barcode reader, Digital scale, External customer display, Bank terminal, External keyboard or PC)
1 x Ethernet port (LAN)
1 x Drawer control port
1 x Barcode reader port (with power supply)
GPRS (optional)
Power supply
Input: AC 110/240V 50-60 Hz
Output: DC 12V 2500mA
Battery
Rechargeable Li-Ion battery 7.4V 2000 mAh (option)
Dimensions (WxDxH)
168 x 243 x 69 mm
Weight
900 g (with 1 paper roll)

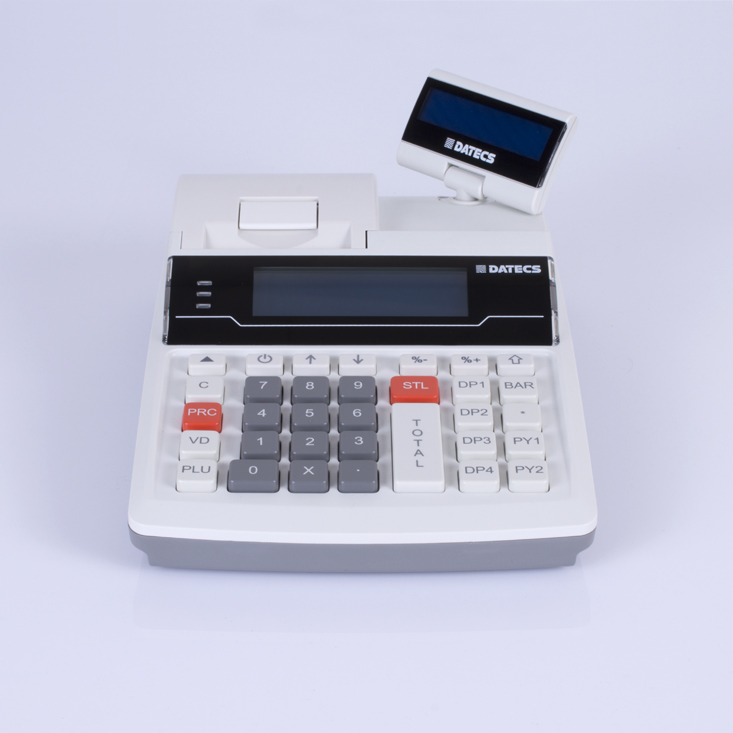

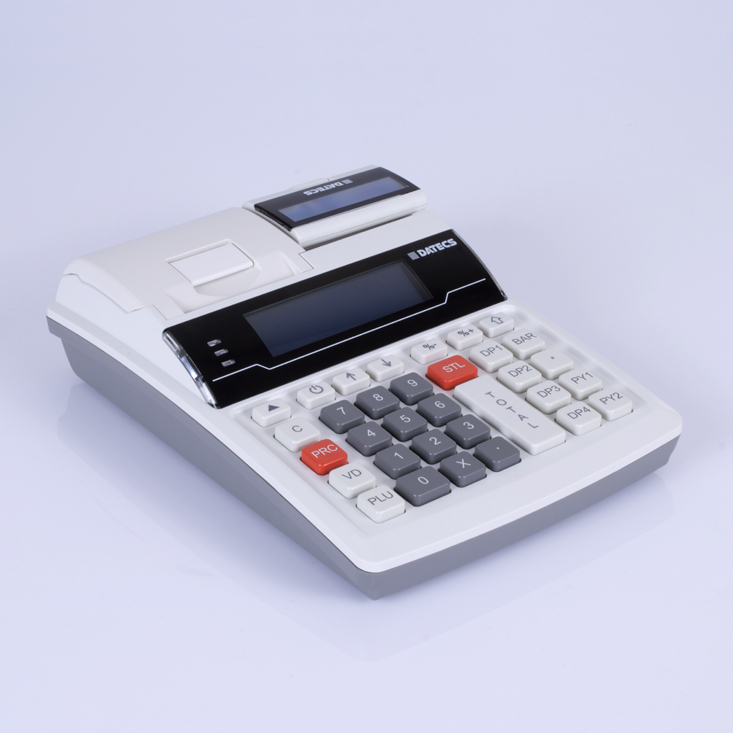

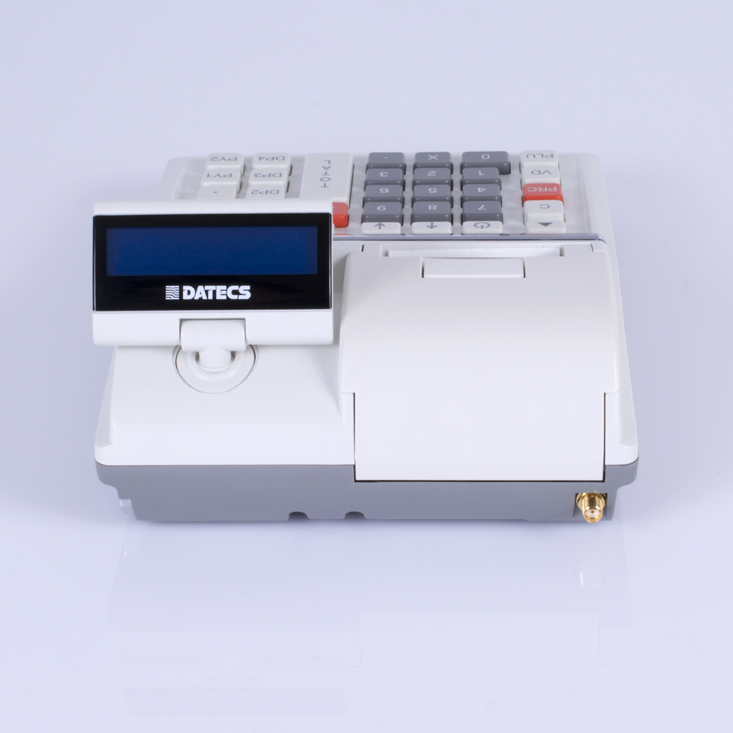

DP-55 Plus represents the classical concept for an Electronic Cash Register. It is built around a powerful ARM processor and offer to the customers a great variety of functions and report generating. Suitable for midsize shops, restaurants etc.
