Printer Mechanism
Direct line thermal printer
Printing Speed
up to 12 lines per sec
Paper Width
2 x 28 mm (18 charaters per line) or
1 x 57 mm (42 characters per line)
Paper Thickness
60 - 72 μm
Roll Diameter
55 mm
40 mm (2 rolls)
Paper Loading
Easy paper loading
Operator Display
Graphic LCD, 4 lines x 22 characters (128x32)
Customer Display
LCD, 2 lines x 16 characters or
Graphic LCD, 2 lines x 16 characters (96x18)
Keyboard
33 Keys
PLU database
Capacity 100 000 PLUs
Name length 32 characters
Inventory groups
9
Departments
9
Operators
30 (30 active)
TAX groups
9
Fiscal Memory
Non-volatile, can keep up to 1850 daily reports
Graphical logo
Suported size (384 x 96)/(384 x 336) dots (8 dots step)
Payment types
Cash, check*, card*, credit* (*programmable)
Cash with alternative currency
Barcode types
EAN 13, EAN 8, UPC, Printed by electronic scales
Maximum number of sales in one receipt
Over 380
Connectivity
2 x RS-232C port for:
- Barcode reader
- Digital scale
- External customer display
- PC
1 x Drawer control
Bluetooth (option)
GPRS (option)
Ethernet (option)
Power supply
Input: AC 110/240V~, 50-60 Hz
Output: DC 9V/5A
Battery
Rechargeable Li-Ion battery 7.4V 2000 mAh (option)
Dimensions (WxDxH)
226 x 323 x 93 mm
Weight
1215 g (including the paper roll)

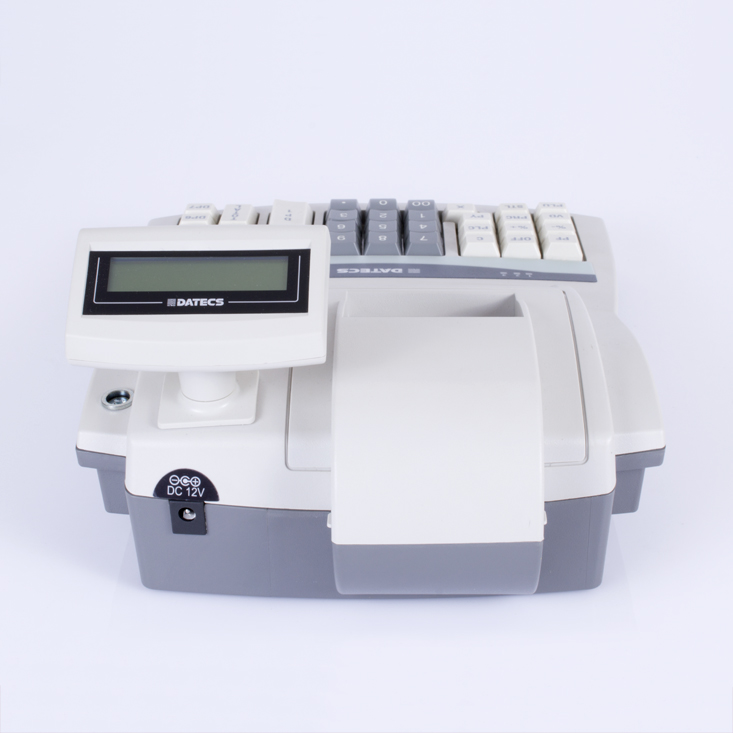

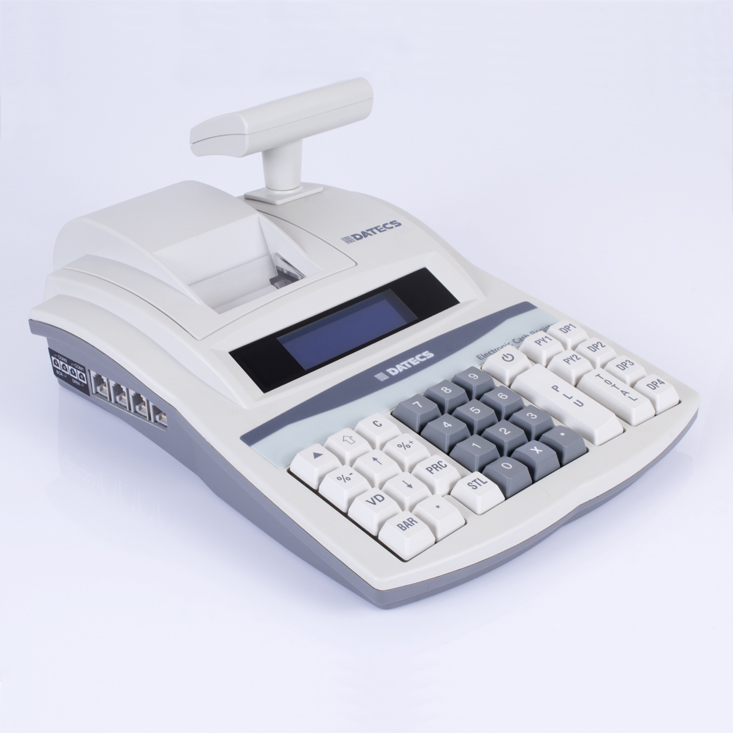

The DP-35 cash register is designed to support medium point of sales and services. It offers variety of interfaces, allowing connection with different periphery, such as barcode reader, digital scale, drawer and external pole display.
DP-35 also provides build-in Electronic Journal, Bluetooth and GPRS dedicated to connect any taxation On-line system.
