Printer Mechanism
Direct line thermal printer
Printing Speed
up to 12 lines per sec
Paper Width
2 x 28 mm (18 characters per line) or
1 x 58 mm (42 characters per line)
Paper Thickness
60 - 72 μm
Roll Diameter
55 mm
40mm (2 rolls)
Paper Loading
Easy paper loading
Operator Display
Graphic LCD, 4 lines x 22 characters (128 x 64)
Customer Display
LCD, 2 lines x 16 characters or
Graphic LCD, 2 lines x 16 characters (96 x 18)
Keyboard
38 Keys
PLU database
Capacity 100 000 PLUs
Name length 32 characters
Inventory groups
9
Departments
9
Operators
30 (30 active)
TAX groups
9
Fiscal Memory
Non-volatile, can keep up to 1850 daily reports
Graphical logo
Suported size (384 x 96)/(384 x 336) dots (8 dots step)
Payment types
Cash, check*, card*, credit* (*programmable)
Cash with alternative currency
Barcode types
EAN 13, EAN 8, UPC, Printed by electronic scales
Maximum number of sales in one receipt
Over 380
Connectivity
2 x RS-232C port for:
- Barcode reader
- Digital scale
- External customer display
- PC
1 x USB 2.0 through mini USB connector:
- USB device class
- mass storage device host class
1 x Drawer control
Bluetooth (option)
GPRS (option)
Ethernet (option)
Power supply
Input: AC 110/240V~, 50-60 Hz
Output: DC 9V/5A
Battery
Rechargeable Li-Ion battery 7.4V 2000 mAh (option)
Dimensions (WxDxH)
244 x 277 x 118 mm
Weight
1180 g (including the paper roll)

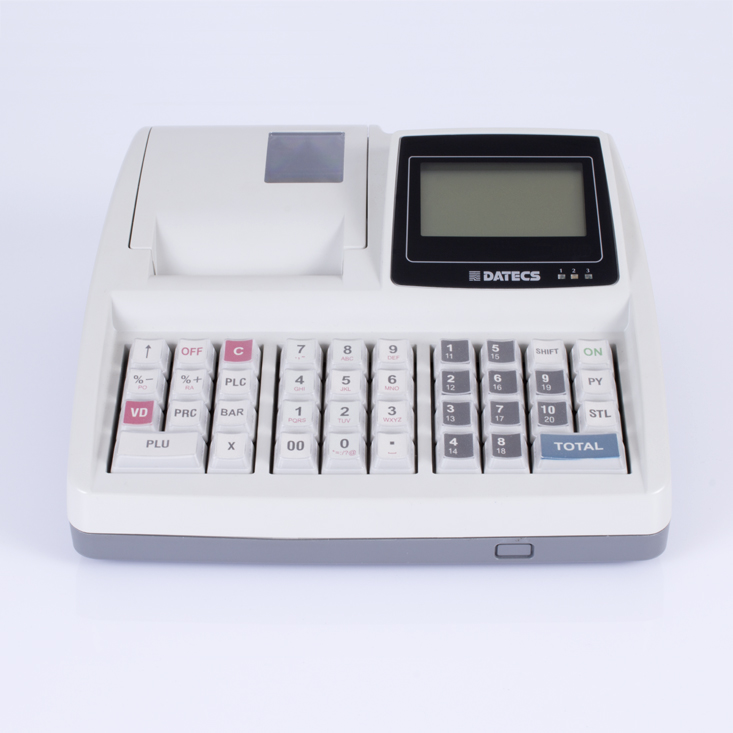

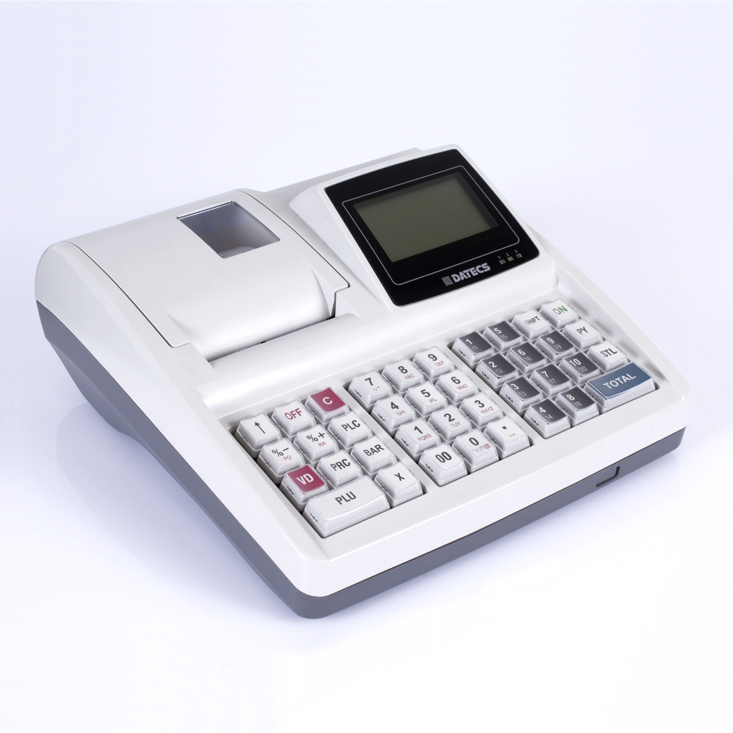

The DP-45 is a durable cash register, designed to support medium and large point of sales and services. It offers Ethernet connectivity, which makes it suitable for client-server applications.
DP-45 also provides built-in Electronic Journal, Bluetooth and GPRS dedicated to connect any taxation On-line system.
