CPU
MT8766
Memory
1 GB RAM
8 GB Flash
Operating System
Android 11
Buttons
On/Off button
1 scan button
2 function buttons
Display
1.41-inch MOLED 320 x 360 px
Sensors
Light sensor Accelerometer
Barcode Reader
2D Zebra SE4770 - 1280 x 800 CMOS
Connectors Magnet
connect contact pads
Wired Communication
USB
Bluetooth
BT version 5.0
Wireless
IEEE 802.11 a/b/g/n/ac, 2.4G / 5G
GNSS
GPS
LED Indication
Scanning
Audio Features
90 dB speaker
Vibration Capabilities
14,000 rpm
Power Supply
DC 5 V through contact pads
Battery
Rechargeable Li-Ion Battery 3.8 V, 900 mAh
Certificates
IP65
CE
FCC
Dimension W x D x H
41 x 64 x 80 mm
Weight
140 g
Operational Temperature
-10 °C to 45 °C / 10 to 90% RH
Storage temperature
-30 °C to 70 °C / 10 to 90% RH
Drop Tested
1.2 m, faces and edges
Currently there are no accessories for this device.

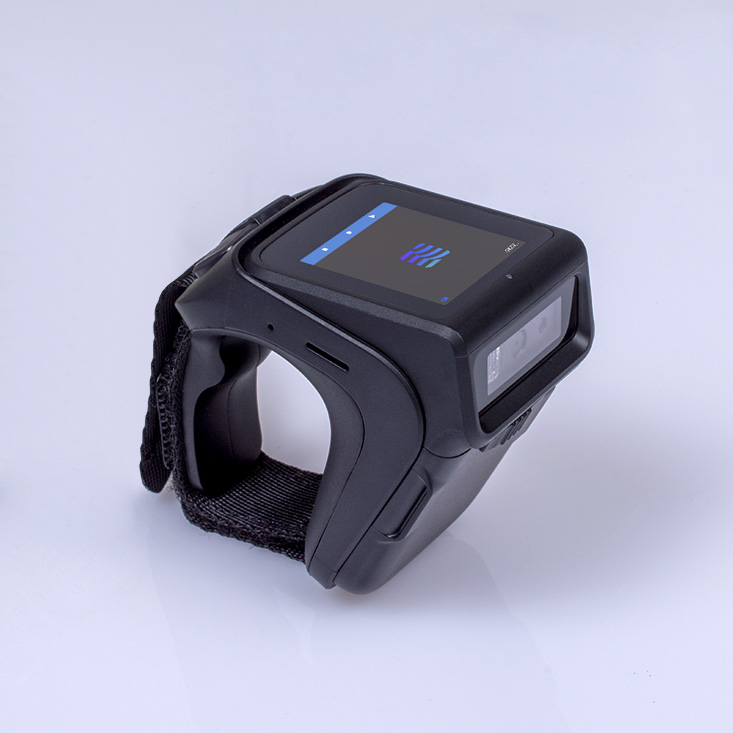

DRS-50 Industry first Android 11 based ring scanner. Rugged, robust and at the same time tender, light and easy to use. DRS-50 is a masterpiece of Datecs abilities to develop perfect products.
