DP-500
Related Documents
| Document Title | File Size | Region | Language | Date Added |
|---|---|---|---|---|
DP-500
|
1.2 MB | International | English | 11/11/2015 |
|
DP-500 User's Manual
|
0.5 MB | Tanzania | English | 20/08/2015 |
|
DP-500 User's Manual
|
0.7 MB | Ukraine | Ukrainian | 20/08/2015 |
|
DP-500 User's Manual
|
0.3 MB | Lithuania | Lithuanian | 20/08/2015 |
|
DP-500 User's Manual
|
2.5 MB | Serbia | Serbian | 20/08/2015 |
|
DP-500 User's Manual
|
0.4 MB | Greece | Greek | 20/08/2015 |
|
DP-500 User's Manual
|
0.2 MB | Kosovo | Albanian | 20/08/2015 |
|
DP-500 User's Manual
|
1.1 MB | Hungary | Hungarian | 20/08/2015 |
Related Downloads
| Document Title | File Size | Region | Date Added | OS |
|---|---|---|---|---|
|
FPrint Windows v3.1.4.82
|
4.36 MB | Albania | August 16 2018 | Windows |
|
FPrint Windows v3.1.4.82
|
4.36 MB | Latvia | August 16 2018 | Windows |
|
FPrint Windows v3.1.4.82
|
4.36 MB | Moldova | August 16 2018 | Windows |
Printer Mechanism
Direct line thermal printer
Printing Speed
up to 12 lines per sec
Paper Width
58 mm
2 x 38 mm (24 characters per line)
Paper Thickness
60 μm
Roll Diameter
65 mm
50mm (2 rolls)
Paper Loading
Easy paper loading
Operator Display
Graphic LCD, 128 x 64 px with backlight
Customer Display
Alpha-numeric LCD, 2 lines x 16 characters
Keyboard
38 Keys
PLU database
Capacity 7500 PLUs
Inventory groups
10
Departments
16
Operators
30 Operators names and passwords
TAX groups
8
Fiscal Memory
Non-volatile ROM, 2000 reports
Payment types
In cash, with check or coupon;
In cash with additional currency (EURO)
Barcode types
Accept Bar-codes: EAN-13, EAN-8, UPC, etc.
Connectivity
Tree programmable RS-232C ports for connection to:
PC
- On-Line via RS232C and Bluetooth;
- With remote PC via GPRS through FTP Server;
- OFF-Line via SD Card
Barcode Reader
Electronic Scale
Drawer connection is available.
Power supply
Input: AC 110/240V 50-60 Hz
Output: DC 12V 2500mA
Battery
Rechargeable Li-Ion battery 7.4V 2000 mAh (option)
Dimensions (WxDxH)
244 x 277 x 118 mm
Weight
1400 g
Compatible Accessories
External keyboard 50 keys

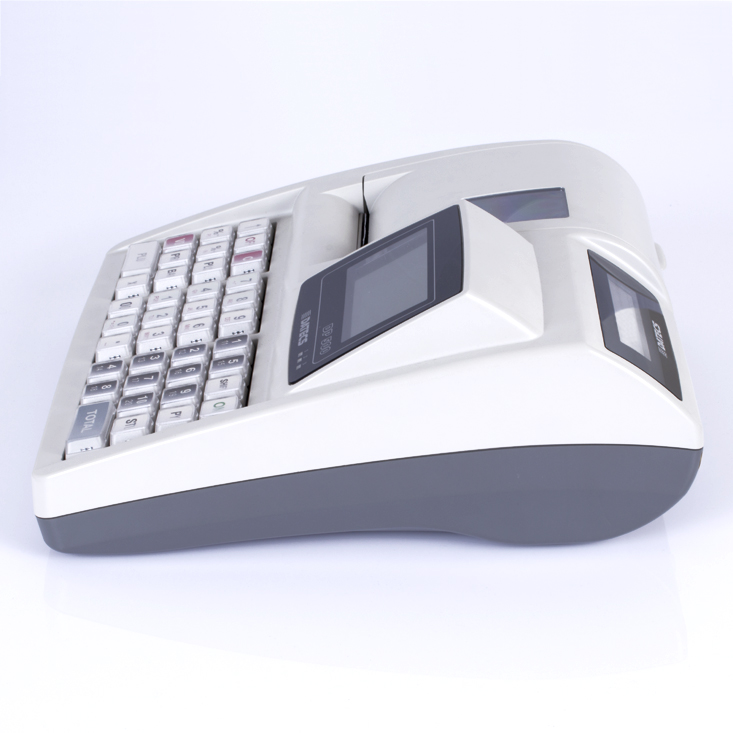

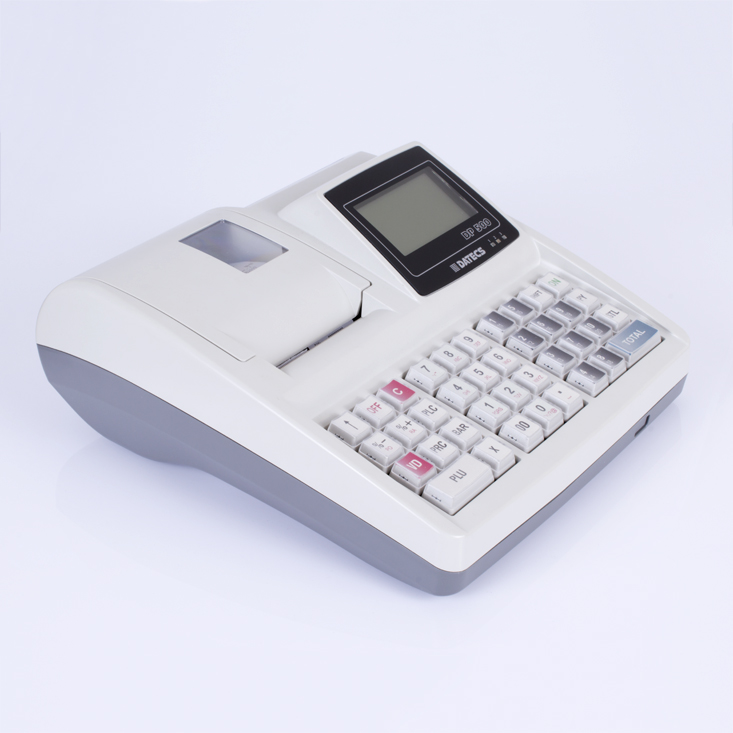

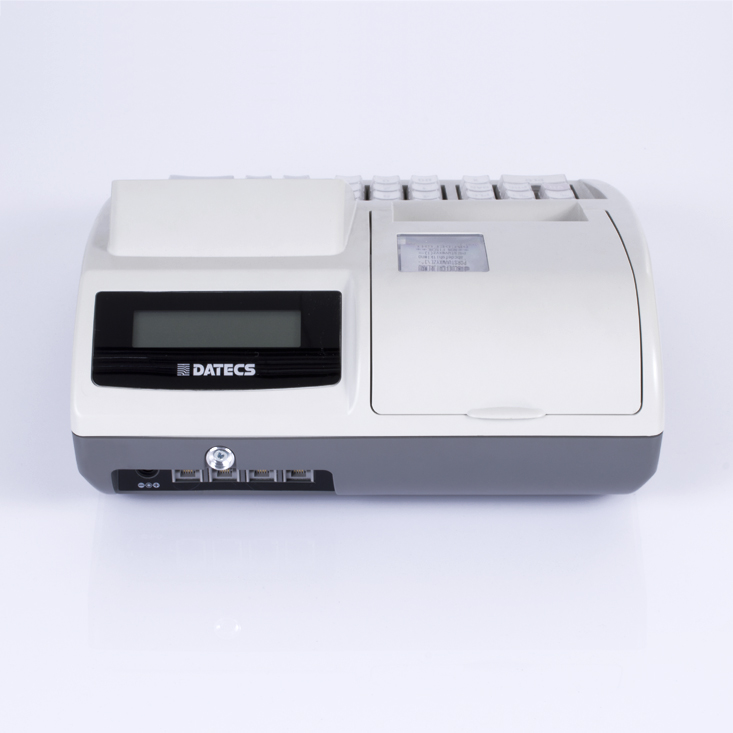

DP-500 is the highest in Datecs portfolio. Powered by a powerful ARM 7 CPU it provides customers with Ethernet connectivity, GPRS communication, WEB based applications, SD card connectivity and many other new features. The model comes with a bigger display allowing eight lines to be displayed.
Connectivity
Options
