CMP-10
Related Documents
| Document Title | File Size | Region | Language | Date Added |
|---|---|---|---|---|
CMP-10
|
11.7 MB | International | English | 05/11/2015 |
|
CMP-10 User's Manual
|
1.2 MB | International | English | 20/08/2015 |
Related Downloads
| Document Title | File Size | Region | Date Added | OS |
|---|---|---|---|---|
|
Datecs Java SDK
|
2.19 MB | International | September 29 2020 | Android / Linux / Windows |
|
Windows Printing SDK
|
126 KB | International | August 21 2015 | Windows |
|
Printer Utility
|
522 KB | International | August 21 2015 | Windows CE / .NET / Mobile |
|
Datecs Print
|
63 KB | International | August 21 2015 | Windows CE / .NET / Mobile |
|
Printer SDK
|
51 KB | International | August 21 2015 | Windows CE / .NET / Mobile |
|
Datecs Non-fiscal Printer Driver
|
63.9 MB | International | August 21 2015 | Windows |
Printing Mechanism
Direct line thermal printer
Printing Width
48 mm (384 dots)
Printing Resolution
203 x 203 dpi (8 x 8 dpmm)
Printing Speed
Max 50 mm per second
Printable Font Sizes
Font A - 32 characters per line
Font B - 42 characters per line
Printable Logo
1 Black and White (384 x 248 dots)
Printable Barcode Types
1D: EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, Interleaved 2 of 5, Codabar
Paper Type
Thermal paper rolls
Paper Width
58 mm
Paper Thickness
60 to 65 μm
Roll Max Diameter
50 mm
Paper Loading
Easy paper loading
Emulation
ESC/POS
Connectivity
RS-232C port with optional special cable (1200 – 115200 bps)
Bluetooth 2.0 class 2 (Serial Port Profile) (optional)
Bluetooth 3.0 class 2 (Serial Port Profile, iPod Accessory Protocol) (optional)
Infrared port Vers. 1.0
OS Compatibility
Palm, BlackBerry, Windows, Android, iOS devices
LED Indication
Battery low
Paper End

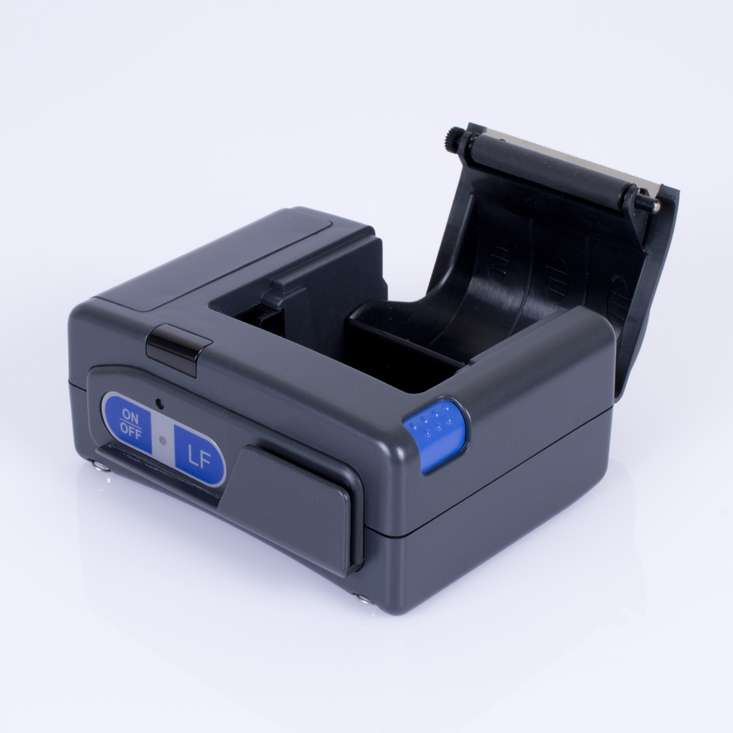

Cover open
Overheating
Keyboard and Buttons
On/Off button
Feed button
Magnetic Card Reader
Triple track bi-directional scanning (optional)
ISO 7810
ISO 7811
ISO 7813
Power Supply
AC 100 to 240 V, 50 to 60 Hz, DC 9 V, 1 A
Battery
Rechargeable Li-Ion battery 7.4 V, 2000 mAh
3 hours charging time
40 000 lines with one charge
Reliability
50 million pulses, 50 km (Thermal head)
15 million lines (Mechanism MCBF)
Certificates
CE
Dimensions (W x D x H)
116 x 104 x 63 mm
Weight
370 g
Operational temperature range
5 to 40 °C, 35 to 85 % RH
Storage temperature range
-20 to 60 °C, 10 to 90 % RH
Drop Tested
1.2 m, 3 times, all sides on concrete
Compatible Accessories
Belt clip
Shoulder strap

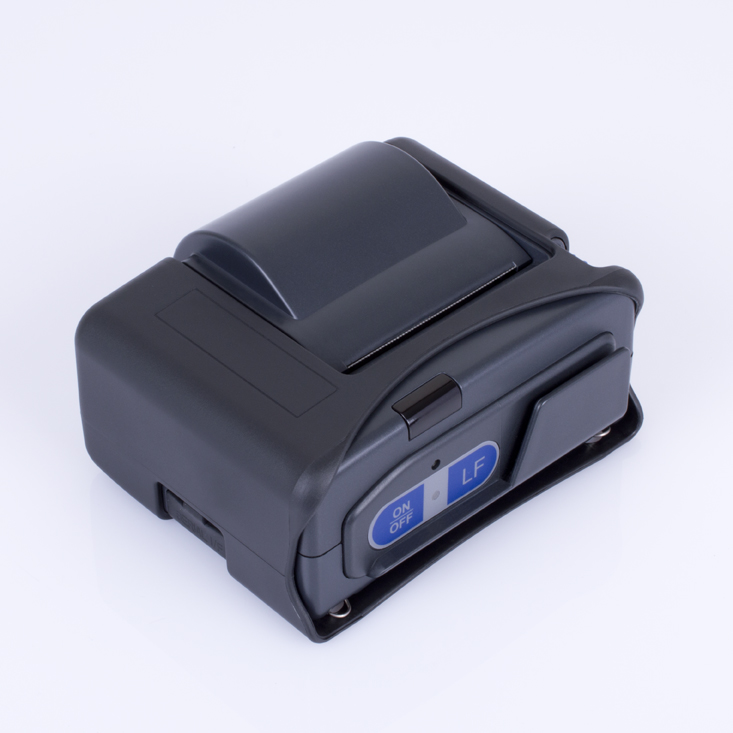

Soft Case
Car power adapter

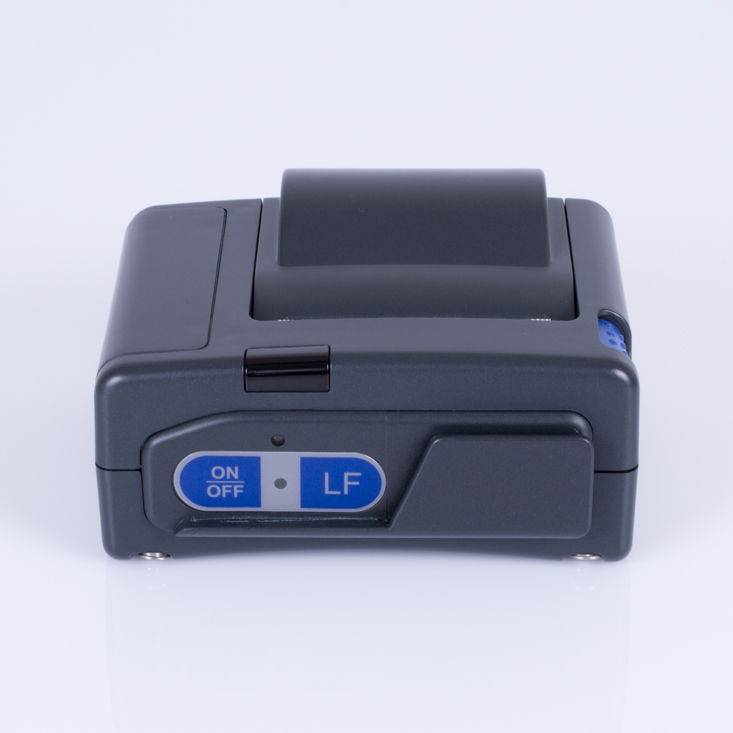

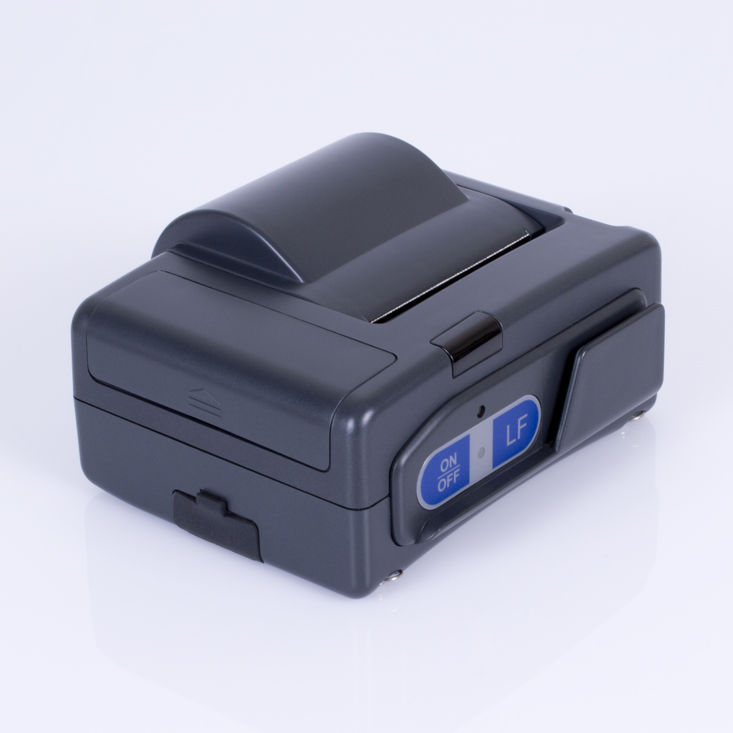

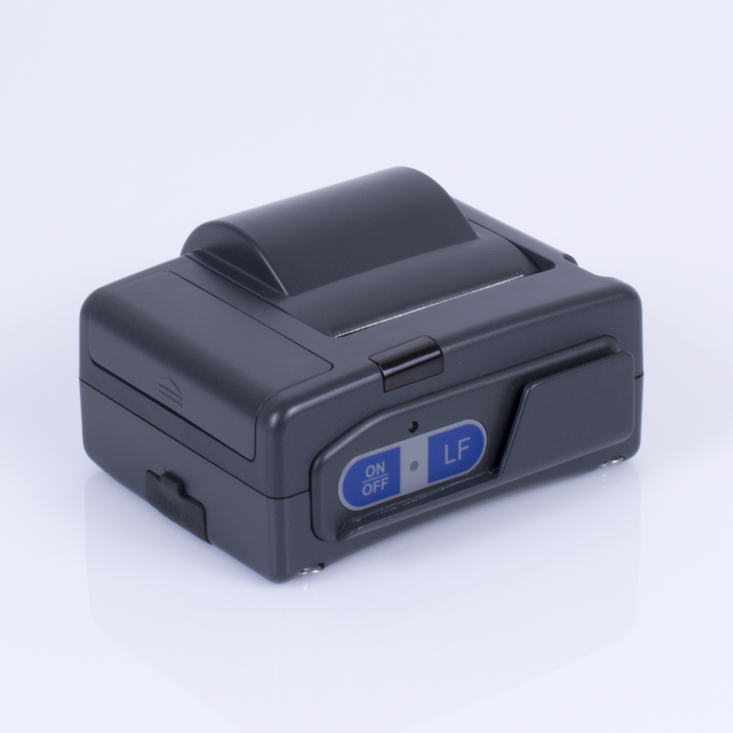

CMP-10 was the first mobile printer designed by Datecs. It was developed jointly by Datecs and Citizen Business Machines. The printer supports Bluetooth, iRDA and Serial communication. It can have also a magnetic stripe reader for operator identifications. CMP-10 also has a high capacity battery pack which allows users to print for many days without recharging the battery.
