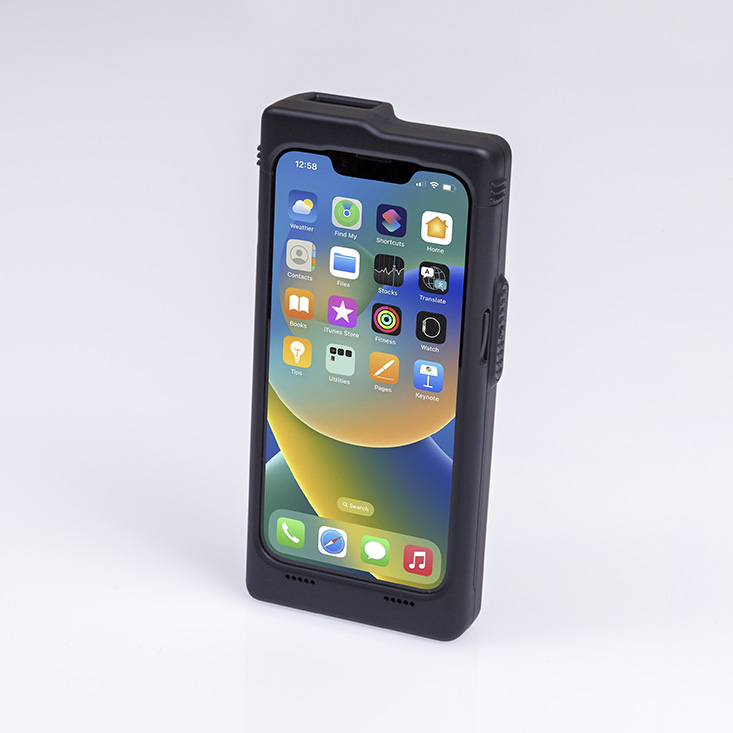

LineaPro 16 Industrial
Related Documents
| Document Title | File Size | Region | Language | Date Added |
|---|---|---|---|---|
LineaPro 16 Industrial
|
165 | International | English | 06/06/2025 |
Related Downloads
Currently there are no drivers for this device.
CPU
ARM Cortex M4
Buttons
2 scan buttons
Push to talk buttons
Contactless Reader (optional)
NFC-A, ISO 14443 Type A
NFC-B, ISO 14443 Type B
ISO/IEC 14443 Type-B
ISO/IEC 15693
JIS X 6319-4
ISO/IEC 18000-3 mode 3
Barcode Reader
2D Opticon MDI-4000 640 x 480 (optional)
2D Zebra SE4750 SR/MR 1280 x 960 (optional)
2D Zebra SE4770 1280 x 960 CMOS (optional)
2D Zebra SE5500 CMOS 2688 x 1520 (optional)
2D Megahunt M101H CMOS 640 x 480 (optional)
Symbologies
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11,
Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA,
Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey,
S-Code, Telepen, Tri-Optic, UK/ Plessey
Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite
codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code
Connectors
USB Type-C port
Type-C connector (cradle)
Type-C connector (cradle)
SAM holder
Docking connector
Wired Communication
Serial communication (USB Type-C port)
Serial communication (Docking connector)
Serial communication (Docking connector)
Device Compatibility
iPhone 16
Audio Features
Electromagnetic buzzer
Power Supply
DC 5 V through USB
DC 5 V through docking connector
Battery
Rechargeable Li-Ion Battery 3.6 V, 2330 mAh Fuel Gauge
Dimension W x D x H
83 x 171 x 25 mm
Weight
180 g
Operational Temperature
-10 °C to 40 °C / 5 to 90% RH
Storage Temperature
-20 °C to 50 °C / 5 to 90% RH
Drop Tested
1.2 m faces and edges
We are currently updating the description. Excuse us for the inconvenience.
Compatibility
