Keyboard and Buttons
Scan button
Battery status button
Magnetic Card Reader
Triple track bi-directional
Encrypting Magnetic Card Reader
Triple track bi-directional (optional)
AES-256, DUKPT for AES-128 and 3DES
Contactless Card Reader
(optional) supports:
MiFARE Mini MiFARE Classic 1K / 4K
MiFARE Ultra-Light / Ultra-Light-C
MiFARE Plus 2K / 4K
ISO 14443 A&B
ISO 15693
DESFire
FeliCa
1D Barcode Reader
1D Opticon MDL1000* - Laser Barcode Scan Engine (optional)
Supported Symbology 1D
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code: Chinese Post, Korean Postal Authority code
Composite codes, MicroPDF417, PDF417
2D Barcode Reader
2D Newland EM3070* - Image Sensor 752x480 CMOS (optional)
2D Intermec EA-30 - Image Sensor 752x480 CMOS (optional)
Supported 1D and 2D Symbology
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128,
GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code
Connectivity
Apple 9 pin connector
Pass-through sync through mini USB BT 2.0 Class 2 (option) - SPP - Serial Port Profile
Device Compatibility
iPod 5, iPhone 5, iPhone 5S
LED Indication
4 LEDs for battery status
Audio Features
Electro-Magnetic Buzzer
Power Supply
DC 5V through mini USB
DC 5V through Single or 5 Stations charger
Battery
Rechargeable Li-Ion Battery 3.7V / 1300 mAh
Reliability
1 000 000 magnetic card swipes
Certificates
CE, FCC, PCI PTS 3.x (when Secure Magnetic Card Reader is installed), Apple® Mfi
Dimension W x D x H
69 x 142 x 22 mm with 1D barcode reader
69 x 142 x 27 mm with 2D barcode reader
Weight
120 g with battery and 2D barcode reader (without iPod 5 / iPhone 5)
Operational temperature range
-10 °C to +40 °C / 5 to 90% RH
Storage temperature range
-20 °C to +50 °C / 5 to 90% RH
Drop Tested
1.5 m, 6 faces + 4 edges on concrete
Compatible Accessories
Single charger (GT1)
5 stations charger (GT5)
Holsters
Pistol Grip

Cases and Holsters (5)

1 rugged case lineapro 5 1d without msr

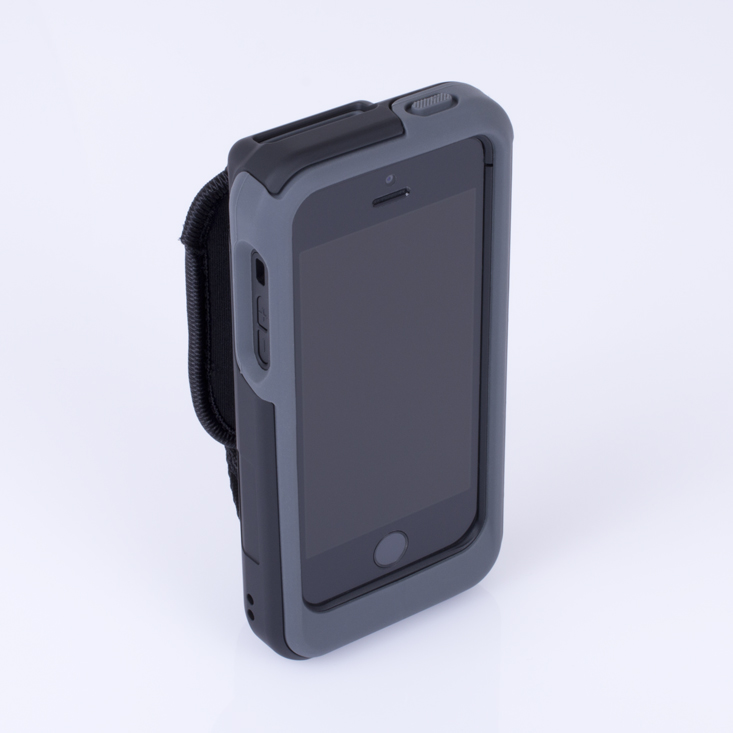

Rugged Case LineaPro 5 1D without MSR

1 rugged case lineapro 5 1d with msr

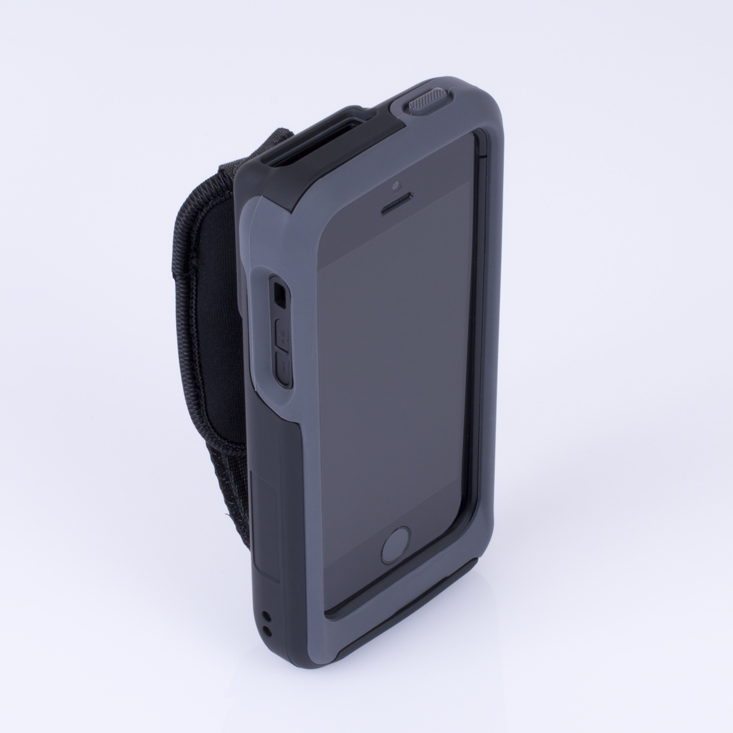

Rugged Case LineaPro 5 1D with MSR

1 pistol grip lineapro 5

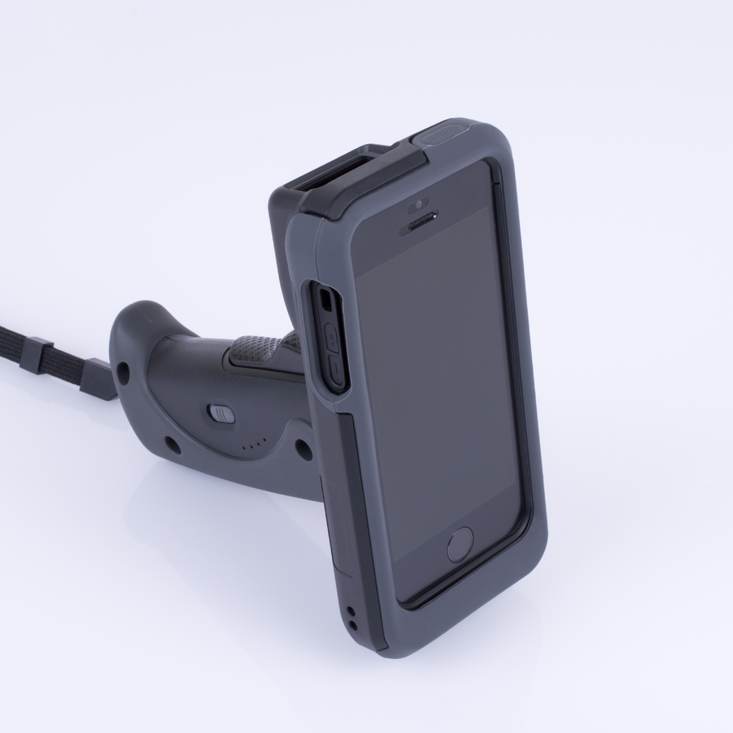

Pistol Grip LineaPro 5

1 rugged case lineapro 5 2d without msr

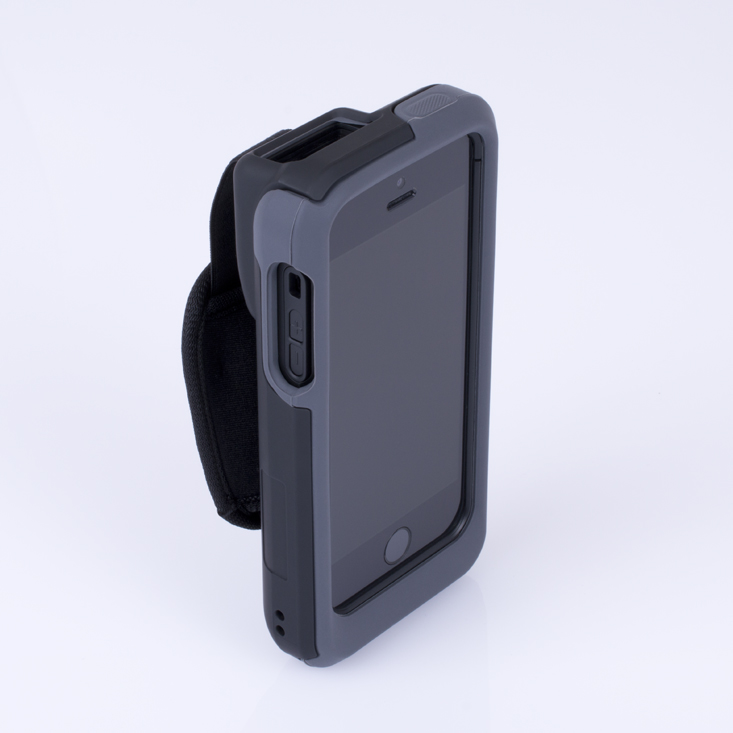

Rugged Case LineaPro 5 2D without MSR

1 rugged case lineapro 5 2d with msr

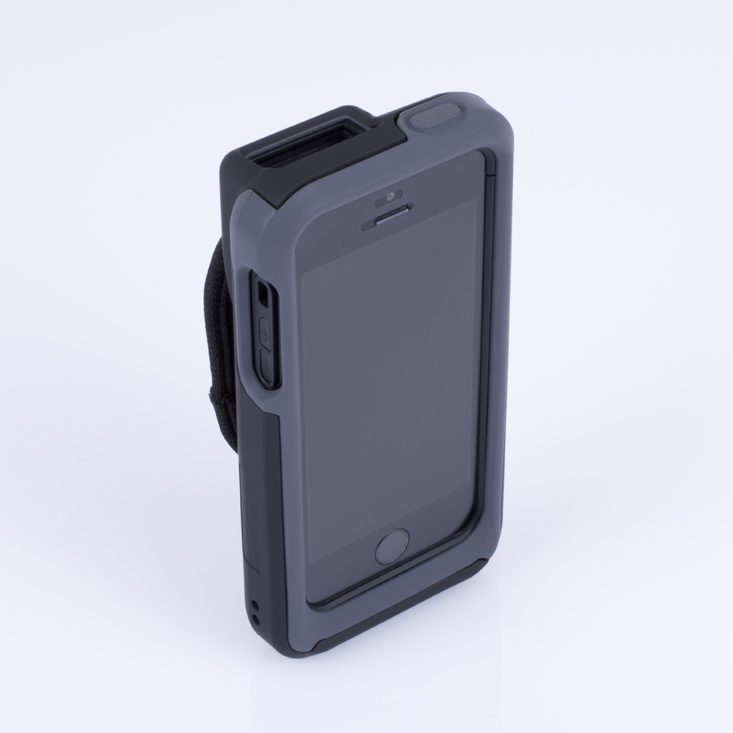

Rugged Case LineaPro 5 2D with MSR


(1)

1 lineapro 5 belt holster with shoulder strap

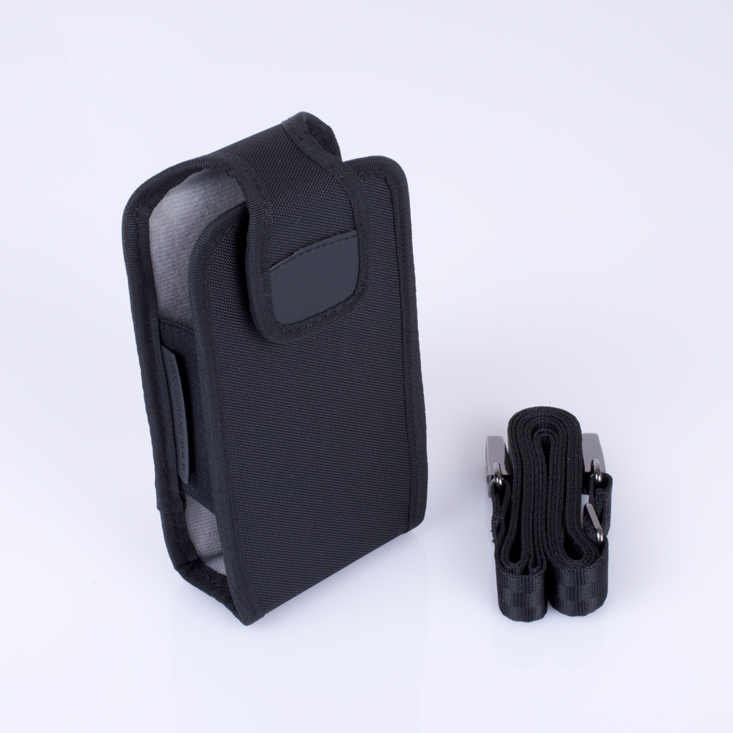

LineaPro 5 Belt Holster with Shoulder Strap


Charging Docks and Printer Docks (2)

1 5 station gang charger (lineapro 5, lineapro 4)

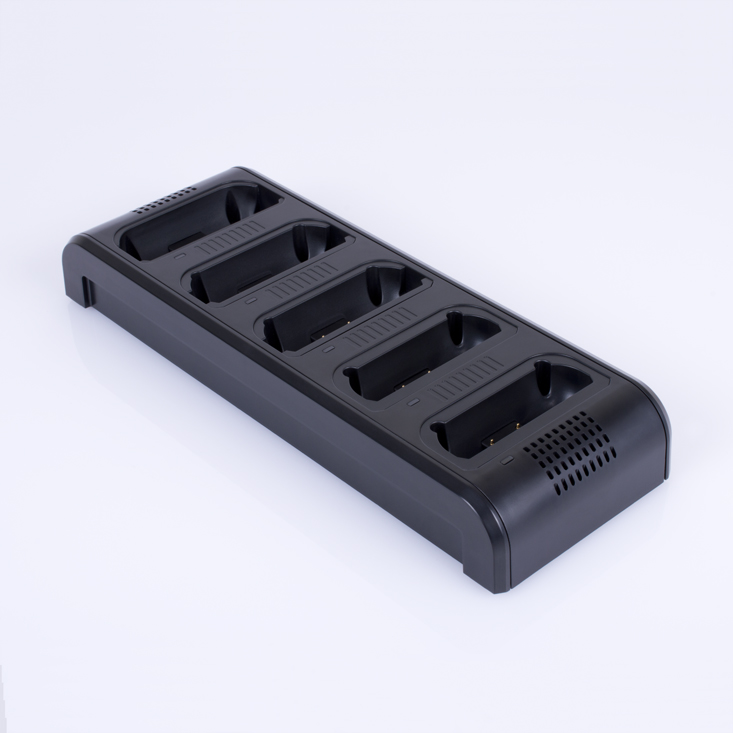

5 Station Gang Charger (LineaPro 5, LineaPro 4)

1 single charger (lineapro 5, lineapro 4)

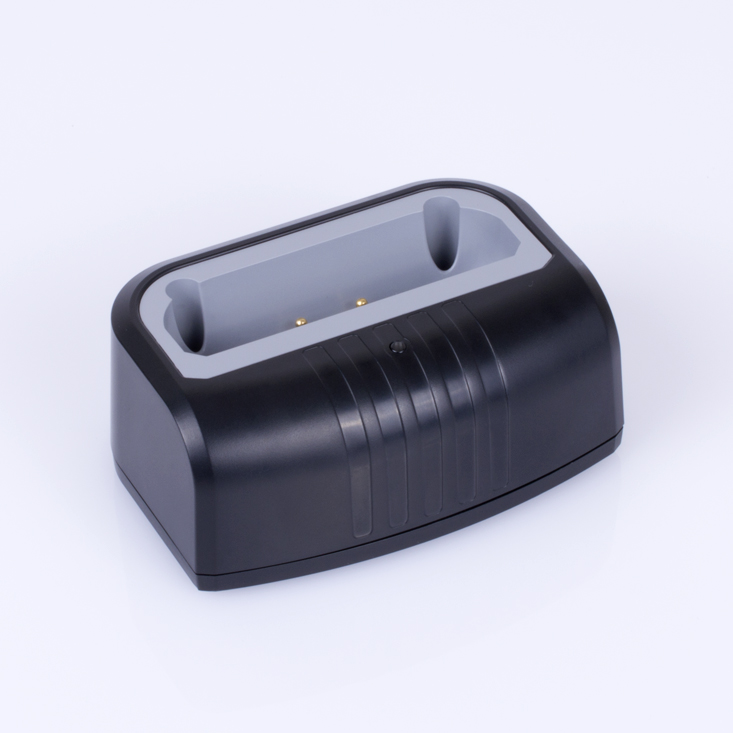

Single Charger (LineaPro 5, LineaPro 4)


LineaPro 5 allows mobile workers to convert their iPod® or iPhone® into a powerful point of sale solution.

The LineaPro 5 includes a 1D or 2D barcode scanner, optional functions like 3-track magnetic card reader or secure MCR, RFID card reader, Bluetooth and a rechargeable battery.
