Z-3100

Related Documents
Currently there are no documents for this device.
Related Downloads
Currently there are no drivers for this device.
Light Source
CCD 617nm Red LED
Scan Lines
Single
Scan Angle
42°
Scan Speed
330 scans per second
Depth of Field
10 ~ 220 mm for UPC/EAN 100%
Minimum Bar Height
0.125 mm at PCS 90%, Code 39
Print Contrast
30% at UPC/EAN 100%
Indicators
Blue LED
Buzzer
Programmable tone and duration
System Interfaces
Keyboard, RS-232C, USB 1.1, Wand
Current
200 mA
Laser Class
IEC 60825-1: Class II; CDRH Class II
Electromagnetic Interference
Complies with CE and FCC DOC requirements
Supported Barcode Standards
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen
Power Supply
DC 5V ±10%
Dimensions (W × D × H)
152.3 × 64.4 × 104.9 mm
Weight
84 g
Operating Temperature
0°C ~ 40°C
Storage Temperature
-20°C ~ 60°C
Ambient Light Immunity
4500 Lux (Fluorescent light); 100000 Lux (Sunlight)
Drop Test
1.5 m
Optional Accessories

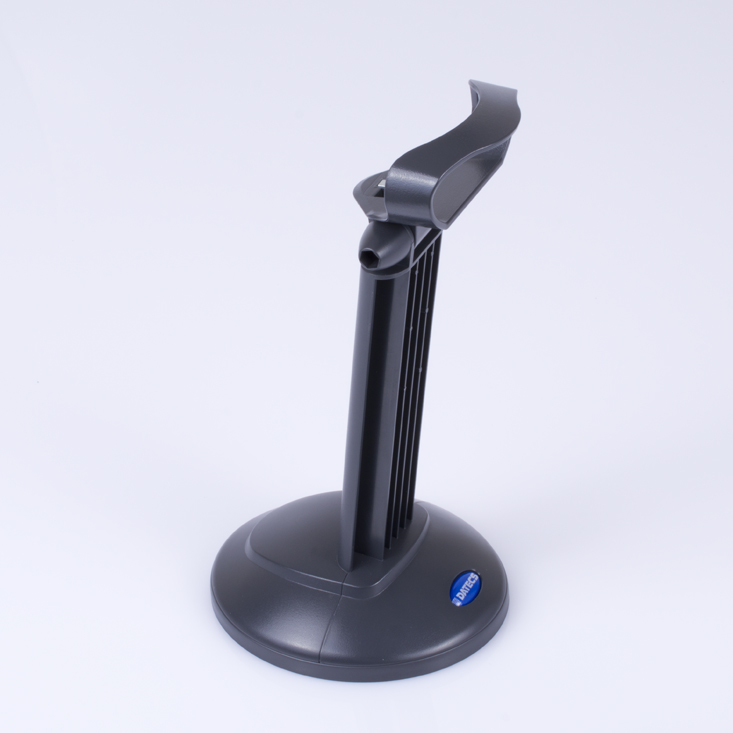

Stand (optional)

Stands (0)

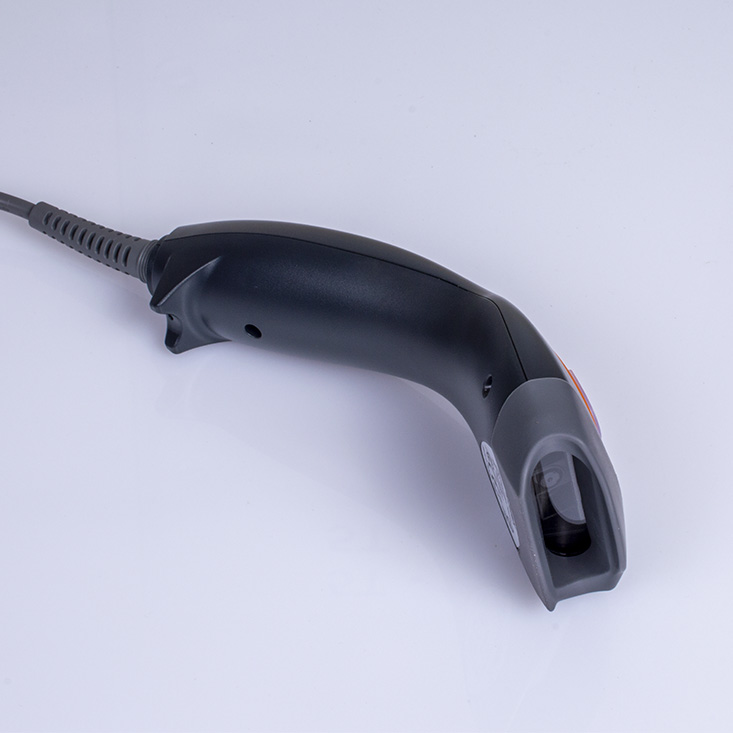

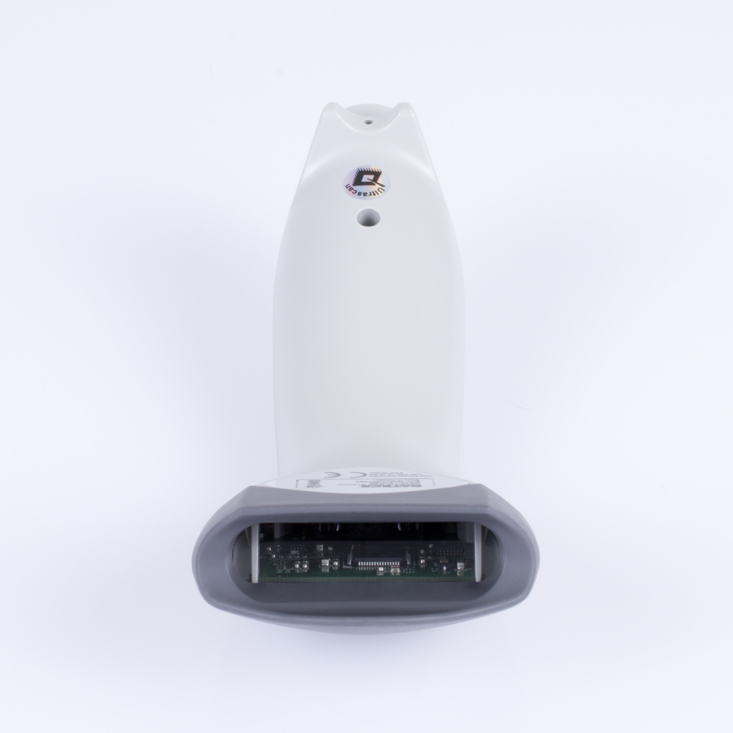

Datecs is a certified distributor of Zebex scanners. The Z-3100 is an advanced middle-range handheld CCD scanner. For more information, please visit Zebex' product page here.
